SW80-441 Albright Single-acting Solenoid Contactor 24V Continuous

£38.94 Excl. VAT

(£46.73 Inc. VAT)

Earn 38 Loyalty Points

Pre-order
Despatch: 9 to 12 Weeks

Model

SW80-441

Bar Code

DNA

Part Number

SW80-441

Brand

Albright

Colour

Black

Voltage

24V DC

Amperage

100A

Material

Copper/Silver/Bakelite

Coil type

Continuous

Weight

350 g

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

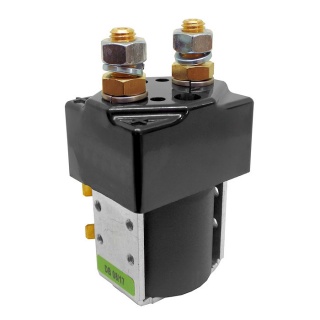

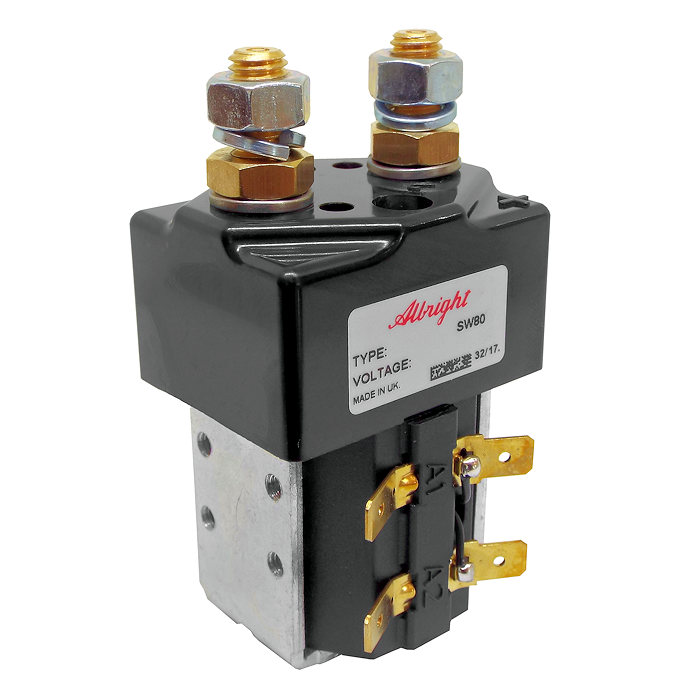

Albright SW80-441 24Vdc 100A single-acting solenoid contactor with enclosed top cover, continuous.

The SW80 series of contactors has been designed for direct current loads, particularly motors used on small electric vehicles such as light industrial trucks, powered invalid cars, etc. They have double-breaking contacts with Silver-alloy contact tips, which are weld-resistant, hardwearing and have excellent conductivity.
They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
This version has an enclosed top cover and an armature cap.
Repair contact kit part number: 2070-57.
Auxiliary switch kit part number: 2070-124.

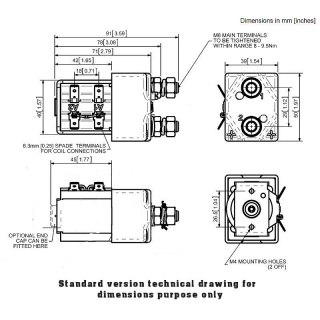

Dimensions

Height, including terminals and coil base cap: 94mm.
Coil width: 41mm.
Cap width: 50.5mm.
Cap depth: 39mm.

About Continuous (CO.) SW80 Solenoids

Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or by steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

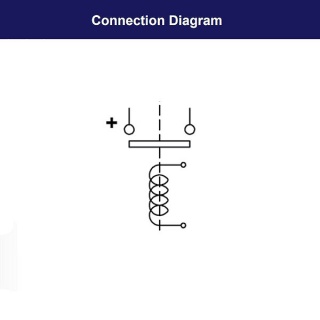

Device Type	NO - SP - ST
Voltage	24V D.C.
Coil Type	Continuous
Amps	100 Amps
Coil Resistance (Ohms)	52
Pull-In Voltage (V)	16.0 Max.
Drop Out Voltage (V)	6.0 Max.
Coil Power Dissipation (W)	11.08
Typical Pull-In Time	20ms
Typical Voltage Drop Per Pole Across New Contacts At 100A	< 40mV
Operating Ambient Temperature	-40 to +60℃
Weight	350g

Application	Interrupted	Uninterrupted
Thermal Current Rating	100A	125A
Intermittent Current Rating:
30% Duty	185A	230A
40% Duty	160A	200A
50% Duty	140A	175A
60% Duty	130A	160A
70% Duty	120A	150A
