SW60B-626 Albright 48V DC Solenoid Highly Intermittent 80A with Blowouts

£20.94  Excl. VAT
  (£25.13 Inc. VAT)
 Excl. VAT

Earn 20 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  190 g





Model:  SW60B-626
Bar Code:  DNA
Part Number:  SW60B-626
Brand:  Albright
Colour:  Black
Voltage:  48V DC
Amperage:  80A
Material:  Copper/Silver/Bakelite
Coil type:  Highly Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

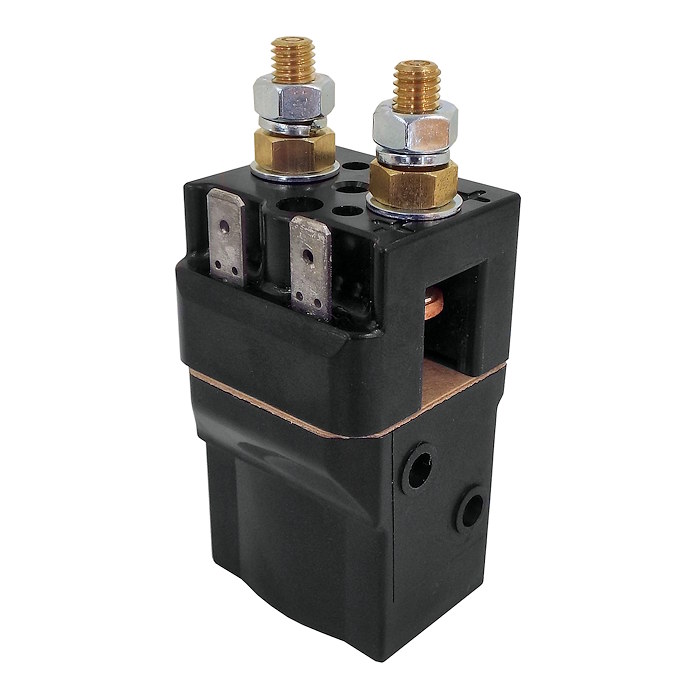

 SW60B-626 series, 48 Volts DC, highly intermittent coil miniature contactor with magnetic blowouts fitted.

  • Albright SW60B series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

Dimensions

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

Magnetic Blowouts

 These open case contactors are of double break configuration and are fitted with magnetic blowouts (denoted by 'B' suffix in the SW60B range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts makes the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

About Highly Intermittent (HO) SW60B Solenoids

 Highly Intermittent Services up to 25% duty cycle and up to 3 minutes continuous energisation. Highest power in coil allows for a stronger return spring to be used, giving good switching characteristics.

 The SW60B features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60B has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST Contactor
Voltage 48V D.C.
Coil Type Highly Intermittent
Amps 80A
Coil Power Dissipation 14 - 21 Watts
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
Less than 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 190g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A
