SW60A-300 Albright 24V DC Single-acting Miniature Solenoid Continuous 80A

£28.50 Excl. VAT

(£34.20 Inc. VAT)

Earn 28 Loyalty Points

Pre-order
Despatch: 9 to 12 Weeks

Model

SW60A-300

Bar Code

DNA

Part Number

SW60A-300

Brand

Albright

Colour

Black

Voltage

24V DC

Amperage

80A

Material

Copper/Silver/Bakelite

Coil type

Continuous

Weight

190 g

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

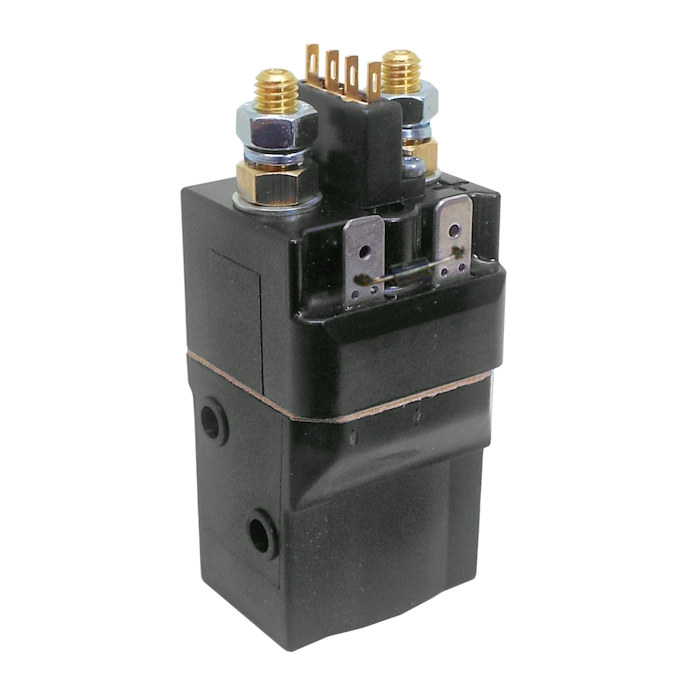

Albright SW60A-300 series 24Vdc miniature single-acting solenoid contactor with diode, continuous.

Albright SW60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
Repair kit: not available on this unit.
Diode fitted.

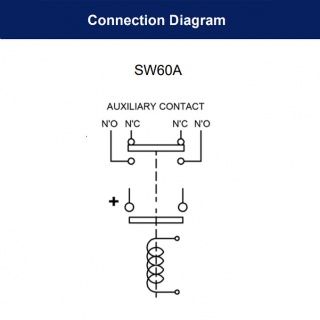

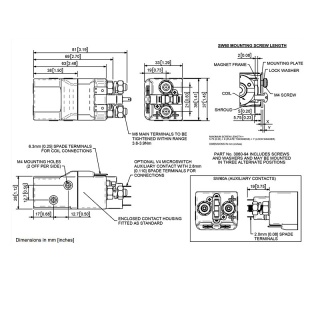

Dimensions

Height including terminals and coil base cap: 81.4mm.
Coil width: 35.9mm.
Cap width: 35.9mm.
Depth: 32.8mm.

Associated Products

3060-94 Standard "U" shaped mounting bracket.
3060-340 Standard "DIN" rail mounting bracket.
3060-382A Curved mounting bracket.
2070-776 "U" shaped mounting bracket with extensions.

About Continuous (CO.) SW60 Solenoids

Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

The SW60 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type	SPST Contactor
Voltage	24V D.C.
Coil Type	Continuous
Amps	80A
Coil Resistance (Ohms)	100
Pull-In Voltage (V)	16.0 Maximum
Drop Out Voltage (V)	6.0 Maximum
Coil Power Dissipation (W)	5.76
Typical Pull-In Time	15ms
Typical Voltage Drop Per Pole across New Contacts at 80A	Less than 40mV
Operating Ambient Temperature	-40 to +60℃ (guide)
Guideline Weight	190g
Application	Uninterrupted
Thermal Current Rating	80A
Intermittent Current Rating:
30% Duty	145A
40% Duty	125A
50% Duty	115A
60% Duty	105A
70% Duty	95A
