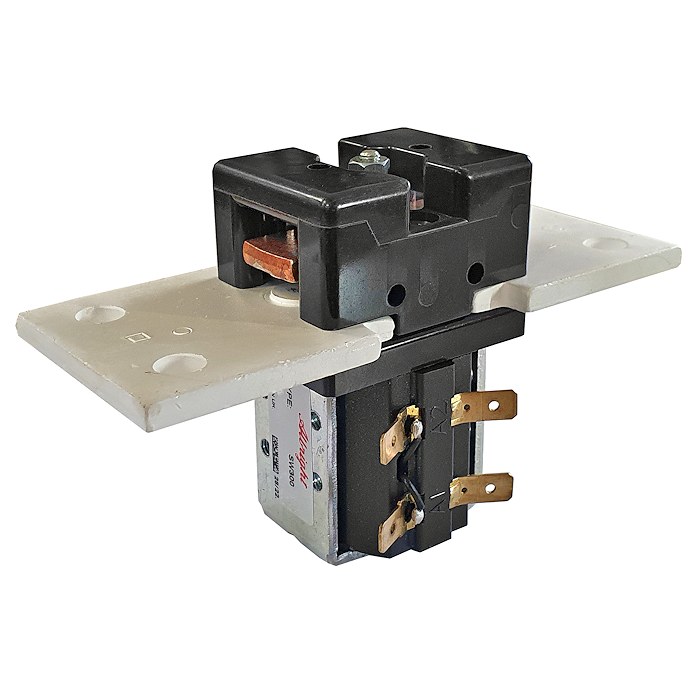

SW300-1002 Albright 60V 300A Busbar Contactor - Continuous

£51.95  Excl. VAT
  (£62.34 Inc. VAT)


Earn 51 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  600 g


Model:  SW300-1002
Bar Code:  DNA
Part Number:  SW300-1002
Brand:  Albright
Colour:  Black
Voltage:  60V DC
Amperage:  300A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright International SW300-1002 60 Volts single pole, single throw continuous coil solenoid contactor.

  • The SW300 is designed for use in telecommunications and power distribution applications where an uninterrupted current load is switched.
  • These contactors are primarily for use with Direct Current loads but can also be used with Alternating Currents.
  • The SW300 features double breaking main contacts with silver alloy tips which are weld resistant, hardwearing and have excellent conductivity.
  • Non-silver plated fixed contacts fitted.
  • Due to their configuration, the SW300 contactors are deemed non-serviceable, therefore contact kits are not available.

Dimensions

  • Height including terminals and coil base cap: 79mm.
  • Coil width: 40mm.
  • Cap width: 49mm.
  • Cap and fixed contact total width: 124mm.
  • Fixed contact depth: 50mm.

Associated Parts

  • 2070-40 Vertical mounting bracket single (2 x recommended)
  • 2070-447 Horizontal mounting bracket kit (1 x recommended)

About Continuous (CO.) SW300 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW300 is a compact contactor that can be busbar mounted vertically or horizontally, if mounted vertically the coil should be at the bottom.

Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SW300 SPST NO
Voltage 60Vdc
Coil Type Continuous
Amps 300 Amp
Coil Resistance (Ohms) 305
Pull-In Voltage (V) 40.0 Maximum
Drop Out Voltage (V) 15.0 Maximum
Coil Power Dissipation (W) 11.80
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
Across New Contacts At 300A
Less than 50mV
Operating Ambient Temperature -40 to +60℃
Weight 560g
Application Uninterrupted
Thermal Current Rating 300A
Intermittent Current Rating:
30% Duty 550A
40% Duty 475A
50% Duty 425A
60% Duty 390A
70% Duty 360A
