SW200-22 Albright Single-acting Solenoid Contactor 12V Intermittent

£110.05  Excl. VAT
  (£132.06 Inc. VAT)
 Excl. VAT

Earn 110 Loyalty Points
2 in stock


Weight:  1.35 kg





Model:  SW200-22
Bar Code:  DNA
Part Number:  SW200-22
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  250A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

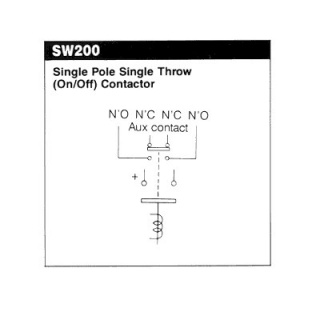

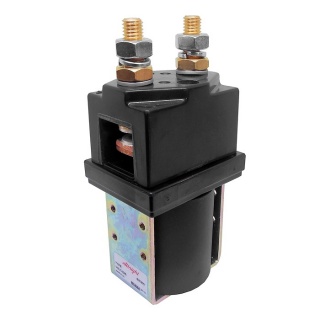

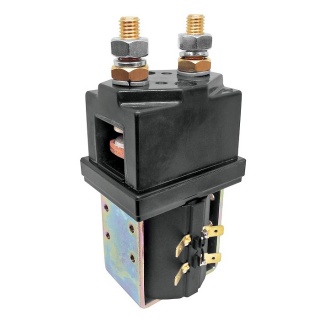

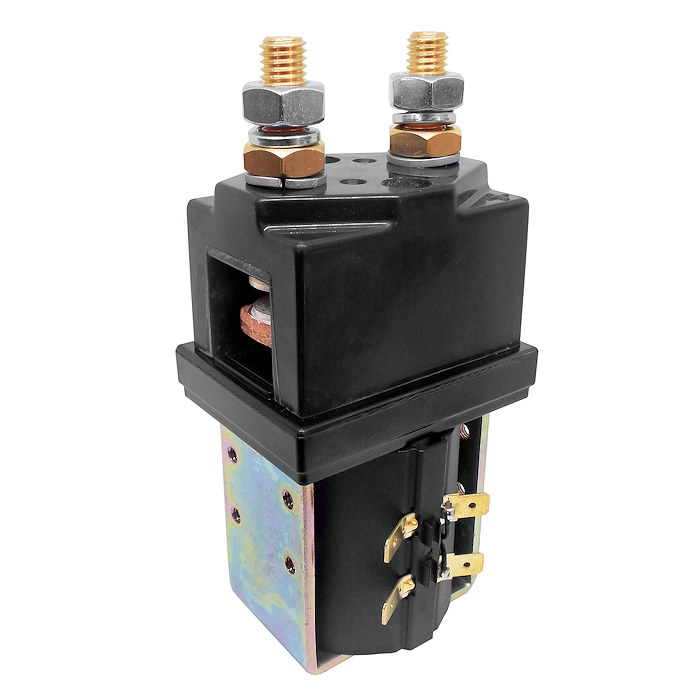

Albright SW200-22 12Vdc 250 Amps single-acting SPST contactor, intermittent.

  • The SW200 series of contactors has been designed for direct current loads, particularly motors as used on larger electric vehicles such as industrial trucks, airport tractors, etc.; they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • This product has the magnetic blowout feature as standard.

Associated products

  • 2155-99 Contact repair kit
  • 2155-202 Auxiliary switch kit
  • 2155-53S 12Vdc intermittent coil

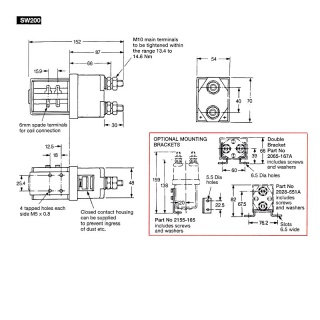

Dimensions

  • Height, including terminals and coil base cap: 153mm.
  • Coil width: 58.5mm.
  • Cap width: 67mm.
  • Cap depth: 48mm.

Magnetic Blowouts

 The contactors are double-break and fitted with magnetic blowouts across both contact gaps as standard. These enable high currents to be ruptured very quickly, so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive, and the positive markings on the top cover of the contactor must be observed.

About Intermittent (Int.) SW200 Solenoids

 Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW200 has been designed for direct current loads, including motors, as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW200 is suitable for switching Resistive, Capacitive and Inductive loads.

 The SW200 features single-pole, single-throw, double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW200 has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical, the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 12V D.C.
Coil Type Intermittent
Amps 250 Amps
Coil Resistance (Ohms) 4
Pull-In Voltage (V) 7.0 Max.
Drop Out Voltage (V) 3.0 Max.
Coil Power Dissipation (W) 36.00
Typical Pull-In Time 40ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 1.35Kg
Application Uninterrupted
Thermal Current Rating 250A
Intermittent Current Rating:
30% Duty 450A
40% Duty 390A
50% Duty 360A
60% Duty 320A
70% Duty 300A
