SD150A-44 Albright 24V Emergency Stop Switch with Auxiliary - Intermittent
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 570 g
Model: SD150A-44
Bar Code: DNA
Part Number: SD150A-44
Brand: Albright
Colour Black/Red
Voltage 24V DC
Amperage 150A
Material Copper/Silver/Bakelite
Coil type Intermittent
| Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

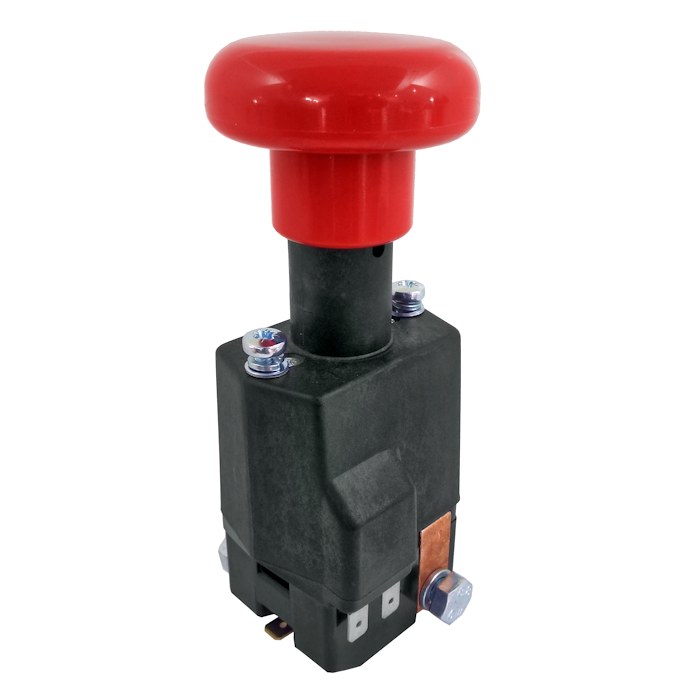

Heavy-duty Albright International 24Vdc intermittent coil emergency battery disconnect switch with auxiliary.
- Rated 150A, 24Vdc intermittent coil.
- Single pole.
- Internal fixing screws at 48mm centres.
- Two M8 hex bolts for battery cable fixing.
- Dust shields fitted.
Dimensions
- 25mm diameter shaft clearance or panel hole.
- Total height including button: 148mm.
Body Beneath Panel Hole Dimensions
- Width: 61mm.
- Depth: 44mm.
- Depth including cable bolts approximately: 62mm.
About The Albright SD150 Emergency Stop Switch
Typically used on 12 Volts and 24-volt dc systems as an emergency stop or kill switch.
The SD150 has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults.
The operation of the switch is such that with the operating knob depressed i.e. in the “off” position, no electrical functions can take place. However, if the knob is in the “On” position, the option of energising the coil and thus closing the main contacts becomes available. The coil energisation can be carried out either through the vehicle keyswitch or as a result of a signal from the vehicle electronic controller. When used as an emergency battery disconnect switch, manually depressing the operating knob will override the energised coil such that the main contact and the auxiliary contact (where fitted) will open until such time as the knob is again moved to the “on” position.
The SD150 combines the dual function of a manual disconnect and coil operated line contactor. The benefits of this design include compact size and reduced installation costs combined with an electrical capacity sufficient for small and medium-size electric vehicles.
Whilst the switches are primarily intended for use with battery-powered vehicles, they are also suitable for use with static power systems. All types are capable of safely rupturing full load battery currents in the event of an emergency.
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Application | Uninterrupted |
| Device Type | SP On-Off with Manual Disconnect |
| Voltage | 24V D.C. |
| Coil Type | Intermittent |
| Thermal Current Rating (Ith) | 150 Amps |
| Coil Resistance (Ohms) | 29 |
| Pull-In Voltage (V) | 15.0 Maximum |
| Drop Out Voltage (V) | 6.0 Maximum |
| Coil Power Dissipation (W) | 19.86 |
| Intermittent Current Rating | 30% Duty 275A
40% Duty 235A
50% Duty 210A
60% Duty 195A
70% Duty 180A |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 590g |
