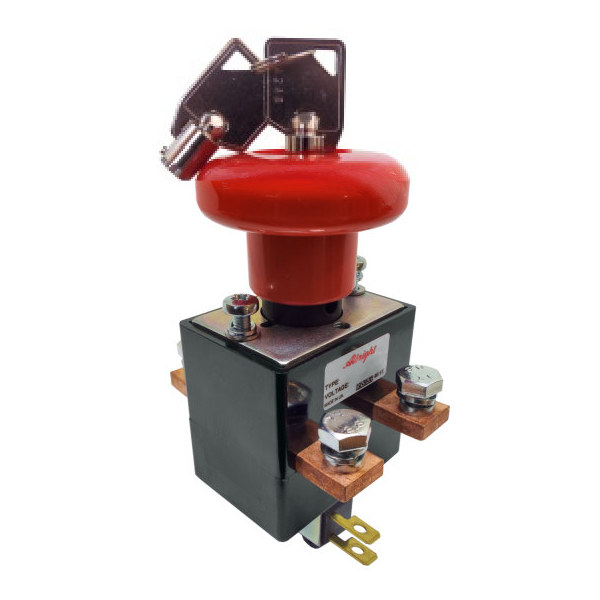

ED252LA-15 Albright Heavy-Duty Emergency Stop Switch With Key 250A 96V Max.
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 620 g
Model: ED252LA-15
Bar Code: DNA
Part Number: ED252LA-15
Brand: Albright
Colour Black/Red
Voltage 12V to 96V DC
Amperage 250A
Material Copper/Silver/Bakelite
| Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |
Albright heavy-duty battery disconnect switch with an auxiliary microswitch and key locking mechanism.
- Rated: 250A, 96Vdc maximum.
- Double pole, single throw.
- Two M5 fixing screws at 48mm centres.
- Four M8 hex bolts for battery cable fixing.
- Typically used on 12V, 24V, 36V, 48V, 72V and 80Vdc electric vehicle systems.
About The ED252 Emergency Stop Switch
The Albright emergency stop switchgear is a world leader in the electric vehicle market, due to its hardwearing and ease of inspection configuration.
The ED252 range of switches has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults. Whilst the switches are primarily intended for use with battery-powered vehicles they are also suitable for use with static power systems. All types are capable of safely rupturing full load battery currents in the event of an emergency.
The ED252 is a manually operated device with an over-centre spring mechanism that provides a snap action for both the opening and closing of the main contacts. The ED252 is easy to install (see drilling details) and is secured with supplied M5 Posidrive mounting screws.
This lockable version features a key that is necessary for the knob to be moved from the “Off” position to the “On” position. Once in the “On” position, the key can be removed. Thereafter, the knob may be depressed to the “Off” position, where it will automatically lock and remain locked until the key is used again to unlock it.
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Application | Uninterrupted |
| Device Type | DPST Emergency Stop Switch |
| Thermal Current Rating (Ith) | 250 Amps |
| Intermittent Current Rating | 30% Duty 455A
40% Duty 395A
50% Duty 355A
60% Duty 325A
70% Duty 300A |
Overload Currents
that can be Ruptured | 1500A at 96V D.C. |
Maximum Recommended
Contact Voltage | 96V D.C. |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 590g |
