Durite 4A Pink MINI Blade or Spade Automotive Fuse | Re: 0-372-04

£3.49  Excl. VAT
  (£4.19 Inc. VAT)
RRP:  £3.92  Excl. VAT
Initial Savings:  £0.43
Earn 3 Loyalty Points
Available


Weight:  10 g


Model:  0-372-04
Bar Code:  5056119109610
Part Number:  0-372-04
Brand:  Durite
Colour  Pink
Voltage  12V/24V DC
Amperage  4A
Material  Brass/Plastic

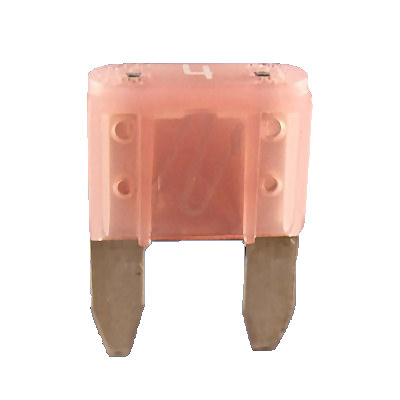

 Durite brand 4A automotive MINI blade or spade fuse.

  • Pink colour coded for easy identification.
  • 4A continuous rating, 8A blow rating.
  • Pack quantities: 10 and 50 pieces.

Dimensions

  • Width: 11.00mm.
  • Length: 16.0mm.
  • Thickness: 4.0mm.

About The Pink 4A MINI Spade Fuse

 The smaller of the Durite automotive blade fuse family, the pink-coloured MINI blade fuse offers 4A continuous load protection. It has a variety of uses in a vehicle's fusebox or when used with inline holders for circuit overload protection.

 The ratings for 4A continuous use are based on a circuit constant load being always-on, and the 8A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent, and therefore the fuse is required to heat up before blowing.
