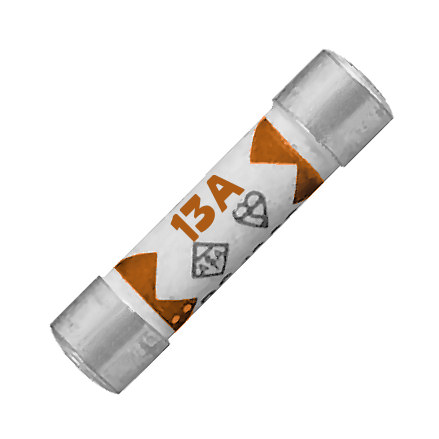

Durite Domestic Mains Plug Fuses - 13A Brown

£4.70  Excl. VAT
  (£5.64 Inc. VAT)
RRP:  £5.28  Excl. VAT
Initial Savings:  £0.58
Earn 4 Loyalty Points
Available


Weight:  20 g





Model:  0-696-13
Bar Code:  5056119122565
Part Number:  0-696-13
Brand:  Durite
Colour:  Brown
Voltage:  240V AC
Amperage:  13A
Material:  Ceramic/Nickel/Brass


 Durite UK domestic mains plug fuses for power tools and household appliances requiring a 13 Amps continuous use surge protection.

  • Continuous Rating 13A.
  • Blow Rating: 26A.
  • Mains fuse to BS1362 240Vac.
  • Pack quantities: 10 and 50 pieces.

Approximate Dimensions

  • Total Length: 25.4mm
  • Total Diameter: 6.3mm

About The 13A Standard Domestic Fuse

 The Durite domestic and household fuse with 6.5mm diameter nickel-plated brass caps are historically used for surge protection on home equipment, usually found in the UK moulded 3-pin plugs and manufactured to BS1362 standards.

 The ratings for 13A continuous use is based on a circuit constant load being always-on, the 26A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
