DC92-TBC10 Albright 12V DC Motor-reversing Contactor - Continuous

DC92-TBC10 Albright 12V DC Motor-reversing Contactor - Continuous
DC92-TBC10 Albright 12V DC Motor-reversing Contactor - Continuous
DC92-TBC10 Albright 12V DC Motor-reversing Contactor - Continuous
DC92-TBC10 Albright 12V DC Motor-reversing Contactor - Continuous
£60.74 Excl. VAT
(£72.89 Inc. VAT)
Earn 60 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
DC92-TBC10
Bar Code
DNA
Part Number
DC92-TBC10
Brand
Albright
Colour
Black
Voltage
12V DC
Amperage
100A
Material
Copper/Silver/Bakelite
Coil type
Continuous
Weight
800 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

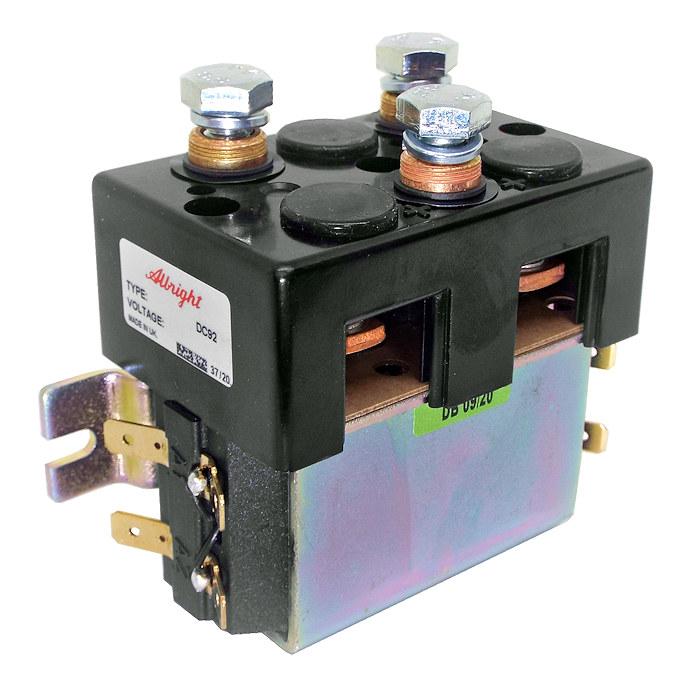

 Albright 12 Volts DC motor reversing solenoid contactor, continuous use with integral mounting bracket.

  • The DC92 has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks.
  • Developed for both interrupted and uninterrupted loads, the DC92 is suitable for switching Resistive, Capacitive and Inductive loads.
  • Repair kit - top cover only part number: 2070-360DN

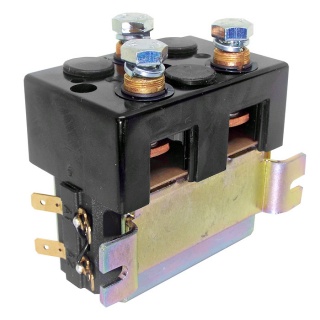

  • Integral mounting bracket version.

About The DC92-TBC10 Motor Reversing Solenoid

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

The DC92 features double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The DC92 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems.

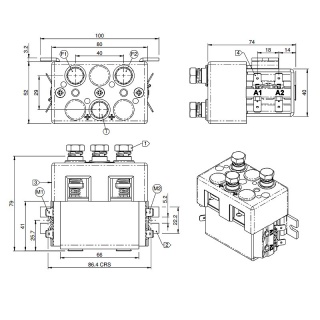

The DC92 is supplied with an integral mounting bracket and there are no tapped holes on the outer case. Please refer to the technical drawings for the bracket fixing points. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type DC92 Monoblock NO
Voltage 12V D.C.
Coil Type Continuous
Amps 100A
Coil Resistance (Ohms) 14
Pull-In Voltage (V) 8.00 Maximum
Drop Out Voltage (V) 3.00 Maximum
Coil Power Dissipation (W) 10.29
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 800g
Application Interrupted Uninterrupted
Thermal Current Rating 100A 125A
Intermittent Current Rating:
30% Duty 185A 230A
40% Duty 160A 200A
50% Duty 140A 175A
60% Duty 130A 160A
70% Duty 120A 150A
