DC88-646 Albright 72-80V DC Motor-reversing Solenoid Contactor Intermittent

£90.70  Excl. VAT
  (£108.84 Inc. VAT)
 Excl. VAT

Earn 90 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.04 kg


Model:  DC88-646
Bar Code:  DNA
Part Number:  DC88-646
Brand:  Albright
Colour  Black
Voltage  72-80V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

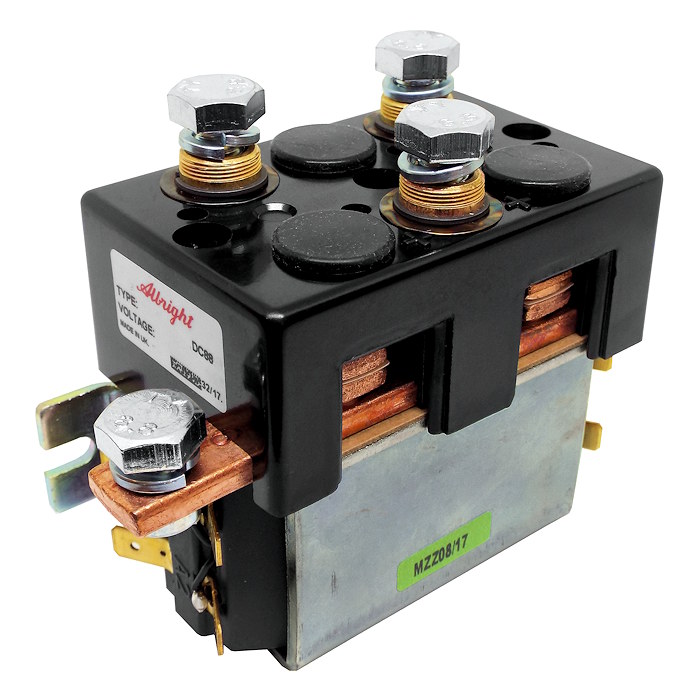

 Albright 72 to 80 Volts DC motor reversing solenoid contactor, intermittent.

  • The DC88-646 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
  • The DC88 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems.

Replacement Component Part Numbers

  • 2070-360A: Top cover and stud contacts.
  • 2070-14J: Moving contact.
  • 2070-326: Long bar fixed contact.

About The DC88-646 Motor Reversing Solenoid

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

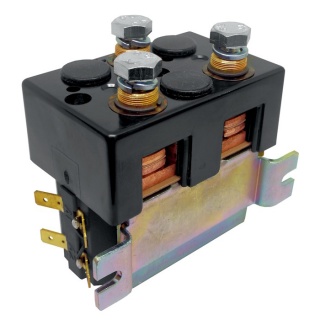

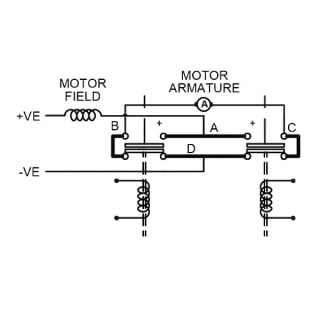

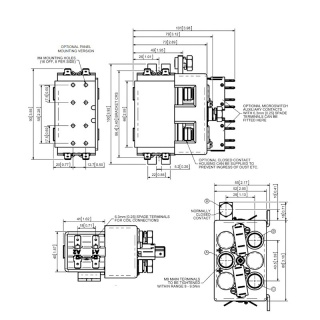

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. This version of the DC88 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type DC88 Monoblock SPDT NO
Voltage 72-80V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 365
Pull-In Voltage (V) 44.0 Maximum
Drop Out Voltage (V) 18.0 Maximum
Coil Power Dissipation (W) 14.20
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Normally Open: Less than 40mV
Normally Closed: Less than 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 1.04kg
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A



Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.
