2070-360DR Albright DC92B Solenoid Top Cover Contacts with Blowouts

£19.16  Excl. VAT
  (£22.99 Inc. VAT)


Earn 19 Loyalty Points
Pre-order
Despatch: 6 to 8 weeks.

Weight:  690g


Model:  2070-360DR
Part Number:  2070-360DR
Brand:  Albright
Colour:  Black
Material:  Copper/Silver/Bakelite

Pre-order and back ordering is available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

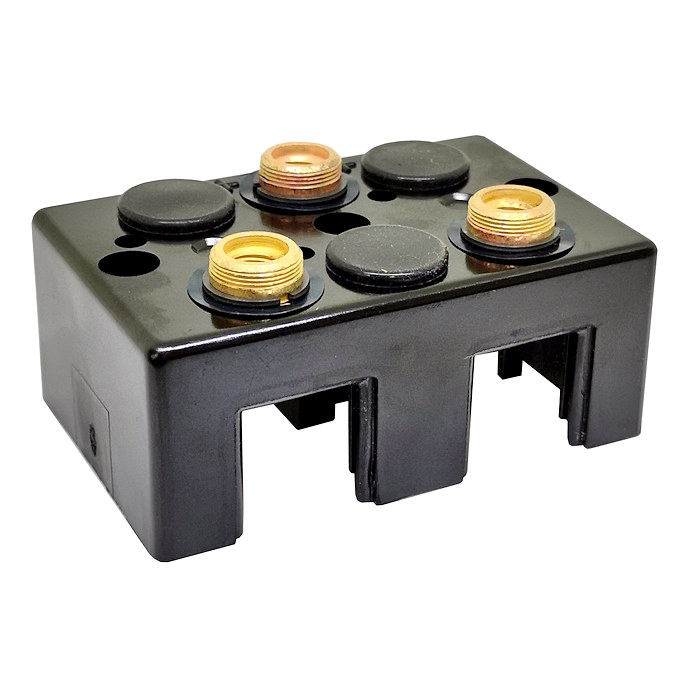

Albright DC92B top cover contact assembly with magnetic blowouts.

  • Replacement top cover contacts for the DC92B range of motor reversing contactors.
  • Due to the build specification of the DC92, the contacts are supplied with the top cover and fittings.
  • One kit repairs the worn top contacts of one unit, replaced when the contacts are worn or on a service inspection.
  • Also due to the configuration of the DC92 unit, these top cover contacts (not the moving contacts) are the only repair components available.

Magnetic Blowouts

 These open case contactor top covers are fitted with magnetic blowouts (denoted by 'B' suffix in the DC92B range) across the contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts makes the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.
