0-985-05 10m Durite 70mm² Double Insulated Electric Starter Cable Orange 460A

£311.64  Excl. VAT
  (£373.97 Inc. VAT)
RRP:  £350.16  Excl. VAT
Initial Savings:  £38.52
Earn 311 Loyalty Points
Available


Weight:  7.62 kg





Model:  0-985-05
Bar Code:  5056119133790
Part Number:  0-985-05
Brand:  Durite
Colour:  Orange
Voltage:  12V/24V/36V/48V DC
Amperage:  460A
Material:  Copper/Rubber

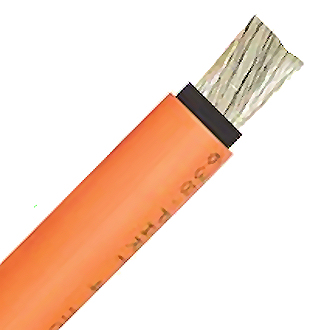

 Durite 460A Orange double-insulated automotive cable for vehicle battery wiring. Copper core double Ethylene-propylene rubber sheathed with a high-temperature PETP tape separator.

  • 70mm² (00 or 2/0 AWG) Orange.
  • 460 Amps double-insulated automotive cable for vehicle battery wiring.
  • 2214 copper strands at 0.20mm.
  • Outside diameter: 16.3mm.
  • Manufactured to BS638 part 4 1996
  • Coil length: 10 Metres.

About the 0-985-05 70.00mm² Orange Double-insulated Electric Cable

 Arc Components Limited presents the 0-985-05, Durite's heavy-duty 460A Orange automotive cable, or arc welding cable as it is sometimes called. It is ideal for your vehicle's connection to the battery and electrical equipment with a higher/heavy-duty load requirement.
 This high-quality double Ethylene-propylene rubber sheathed electrical wire with a high-temperature PETP tape separator is supplied in a 10m coil, perfect for storage in your van or workshop. It is 70.0mm² (00 or 2/0 AWG) and features 2214 strands of 0.20mm separate copper wires bound together in an insulated rubber sleeve, with an outside diameter of 16.3mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS638 part 4 1996. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 460 Amps.

 The Durite 0-985-00 is commonly used as a conductor wire on high-amperage 12V-24V batteries and electrical equipment's heavy-duty wiring.

Specifications

Type Single-core double-insulated automotive wiring
Current Rating 460 Amps
Insulation Colour Orange
Wire 2214/0.20mm copper
Cross-section 70.00mm² (00 or 2/0 AWG)
Voltage For 12, 24, 36, 48, 72 Volts DC systems (150 Volts DC Max.)
Insulation Ethylene-propylene rubber sheathed with a high-temperature PETP tape separator.
Overall Diameter   16.3mm
Length of Cable 10 Metres
Approvals BS638 part 4 1996
Weight 7.62Kg







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.
