0-985-00 10m Durite 70mm² Double Insulated Electric Starter Cable Black 460A

0-985-00 10m Durite 70mm² Double Insulated Electric Starter Cable Black 460A
£326.62 Excl. VAT
RRP £371.16 Excl. VAT
Initial Savings
£44.54
(£391.94 Inc. VAT)
Earn 326 Loyalty Points

Available
Model
0-985-00
Bar Code
5056119133783
Part Number
0-985-00
Brand
Durite
Colour
Black
Voltage
12V/24V/36V/48V DC
Amperage
460A
Material
Copper/Rubber
Weight
8.05 kg

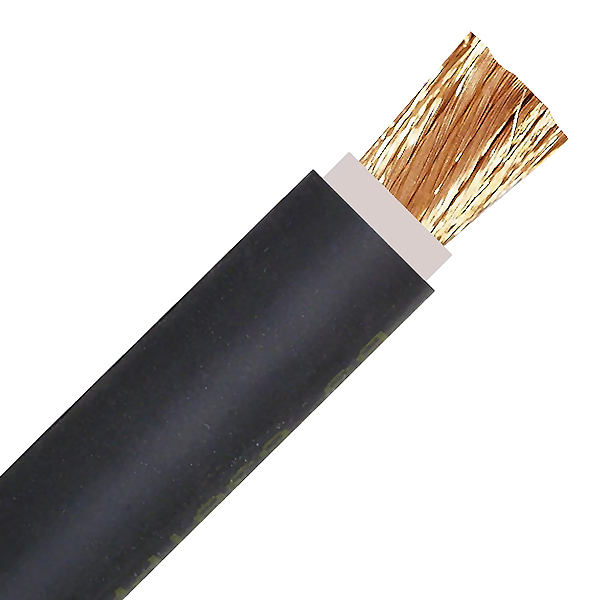

 Durite 460A Black double-insulated automotive cable for vehicle battery wiring. Copper core double Ethylene-propylene rubber sheathed with a high-temperature PETP tape separator.

  • 70mm² (00 or 2/0 AWG) Black.
  • 460 Amps double-insulated automotive cable for vehicle battery wiring.
  • 2214 copper strands at 0.20mm.
  • Outside diameter: 16.3mm.
  • Manufactured to BS638 part 4 1996
  • Coil length: 10 Metres.

About the 0-985-00 70.00mm² Black Double-insulated Electric Cable

 Arc Components Limited presents the 0-985-00, Durite's heavy-duty 460A Black automotive cable, or arc welding cable as it is sometimes called. It is ideal for your vehicle's connection to the battery and electrical equipment with a higher/heavy-duty load requirement.
 This high-quality double Ethylene-propylene rubber sheathed electrical wire with a high-temperature PETP tape separator is supplied in a 10m coil, perfect for storage in your van or workshop. It is 70.0mm² (00 or 2/0 AWG) and features 2214 strands of 0.20mm separate copper wires bound together in an insulated rubber sleeve, with an outside diameter of 16.3mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS638 part 4 1996. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 460 Amps.

 The Durite 0-985-00 is commonly used as a conductor wire on high-amperage 12V-24V batteries and electrical equipment's heavy-duty wiring.

Specifications

Type
Single-core double-insulated automotive wiring
Current Rating
460 Amps
Insulation Colour
Black
Wire
2214/0.20mm copper
Cross-section
70.00mm² (2 AWG)
Voltage
For 12, 24, 36, 48, 72 Volts DC systems (150 Volts DC Max.)
Insulation
Ethylene-propylene rubber sheathed with a high-temperature PETP tape separator.
Overall Diameter
16.3mm
Length of Cable
10 Metres
Approvals
BS638 part 4 1996
Weight
8.05Kg
