0-941-40 50m x 0.65mm² Light Green 5.75A Auto Single-core Electric Cable
£10.88 Excl. VAT (£13.06 Inc. VAT)
RRP: £12.22 Excl. VAT
Initial Savings: £1.34
Earn 10 Loyalty Points
| |
Weight: 640 g
Model: 0-941-40
Bar Code: 5056119132489
Part Number: 0-941-40
Brand: Durite
Colour: Light Green
Voltage: 12V/24V DC
Amperage: 5.75A
Material: Copper/PVC

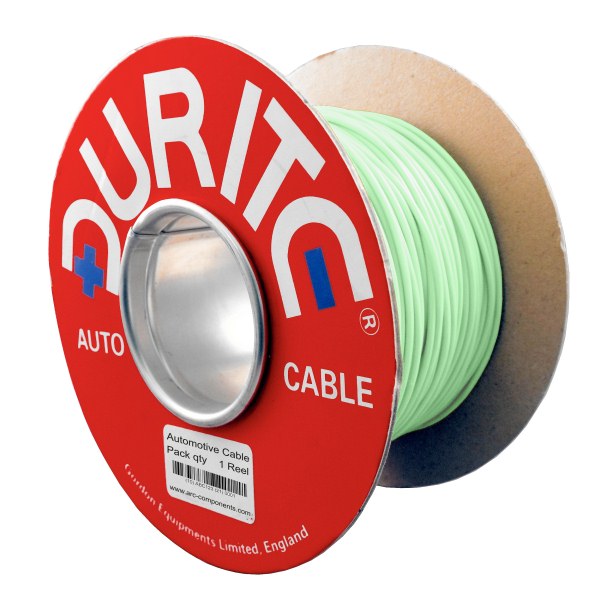

Durite 5.75A Light Green standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- .65mm² (19AWG) Light Green.
- 5.75 Amps single-core automotive cable and vehicle wiring.
- 9 copper strands at 0.30mm.
- Outside diameter: 2.5mm.
- Manufactured to BS6862-1:1971.
- Roll length: 50m.
About the 0-941-40 0.65mm² Light Green PVC Electric Cable
Arc Components Limited presents the 0-941-40, Durite's light-duty 5.75A Light Green automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 0.65mm² (19 AWG) and features 9 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.5mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 5.75 Amps.
The Durite 0-941-40 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
Specifications
| Type | Single-core standard automotive wiring |
| Current Rating | 5.75 Amps |
| Insulation Colour | Light Green |
| Wire | 9/0.30mm copper |
| Cross-section | 0.65mm² (19 AWG) |
| Voltage | For 12 and 24 Volts DC systems (100 Volts DC Max.) |
| Resistance | 29.4mΩ/m at 20℃ |
| Insulation | Hard-grade PVC offers good resistance to abrasion and cut-through. |
| Overall Diameter | 2.5mm |
| Temperature | Minus 30 to +70℃ |
| Length of Cable | 50 Metres |
| Approvals | BS 6862-1:1971 |
| Weight | 0.64Kg |
