0-932-67 100m x 1.00mm˛ Purple-White 16.5A Auto Single Core Cable

£25.63  Excl. VAT
  (£30.76 Inc. VAT)
RRP:  £29.45
Savings before Cart:  £3.82
Earn 25 Loyalty Points
Available


Weight:  1.28 kg


Model:  0-932-67
Bar Code:  5056119131871
Part Number:  0-932-67
Brand:  Durite
Colour:  Purple/White
Amperage:  16.5A
Material:  Copper/PVC

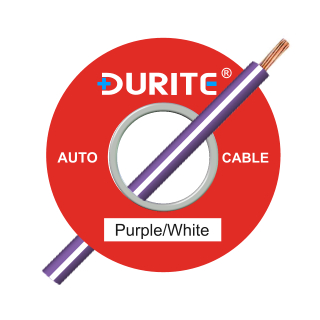

 Durite single-core 1mm² thin wall automotive purple with a white tracer PVC sheathed electric cable.

  • Length: 100m.
  • 1.00mm² purple-white, (purple cable, white stripe).
  • 16.5A automotive single core cable.
  • 32 Strand 0.20mm.
  • Outside diameter: 2.1mm.
  • To ISO 06722-4.

About the 1mm² Purple and White Thin Wall Electric Cable

 100-metre rolls of light-duty 16.5A purple with a white tracer line auto electrical thin wall cable, used for light current loads. The thin-wall configuration increases current load capabilities to a maximum of 16.5 amps continuous. With a reduced but harder PVC coating, thin-wall cabling is modern by design and adopted for wiring looms and trees with modern vehicle manufacturers. Durite thin wall electrical cable is manufactured to ISO 6722-4 industry standards, reduces the weight and volume of vehicles cable looms and has good overall resistance to petrol, diesel and lubricating oils.

 Used as a conductor wire on low amperage electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 16.5 amp
Insulation colour Purple with a white tracer line
Wire 32/0.20mm copper
Cross-section 1.00mm²
Voltage 60 Volts DC maximum
Resistance 18.5mΩ/m at 20℃
Insulation Hard grade PVC to BS6746 Type 5.
Overall diameter   2.1mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of cable 100 Metres
Approvals ISO6722/4
Weight 1.27Kg
