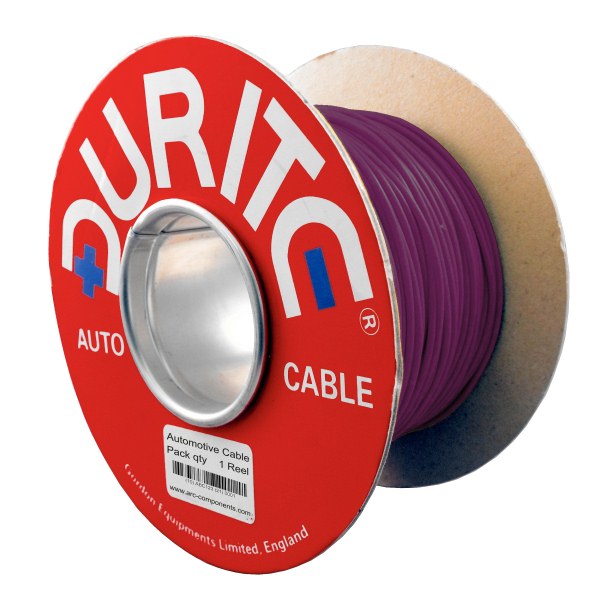

0-932-06 100m x 1.00mm˛ Purple 16.5A Auto Single-core Cable
Weight: 1.28 kg
Bar Code: 5056119131536
Part Number: 0-932-06
Voltage 12V/24V/36V/48V DC
Durite 16.5A Purple automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 1mm² (17AWG) Purple.
- 16.5 Amps single-core automotive cable and vehicle wiring.
- 32 copper strands at 0.20mm.
- Outside diameter: 2.1mm.
- Manufactured to ISO 6722-4.
- Roll length: 100m.
About the 0-932-06 1.00mm² Purple Thin Wall Electric Cable
Arc Components Limited presents the 0-932-06, Durite's light-duty 16.5A Purple automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 32 strands of 0.20mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.1mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 16.5 Amps.
The Durite 0-932-06 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
|Type ||Single-core thin wall cable |
|Current Rating ||16.5 Amps |
|Insulation Colour ||Purple |
|Wire ||32/0.20mm copper |
|Cross-section ||1.00mm² (17 AWG) |
|Voltage ||60 Volts DC Max. |
|Resistance ||18.5mΩ/m at 20℃ |
|Insulation ||Hard grade PVC to BS6746 Type 5. |
|Overall Diameter ||2.1mm |
|Temperature ||Minus 40 to +105℃ |
|Length of Cable ||100 Metres |
|Approvals ||ISO6722/4 |
|Weight ||1.27Kg |
