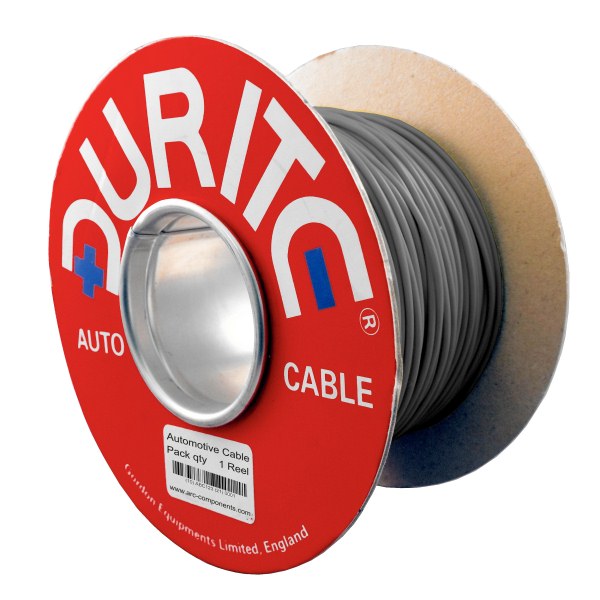

0-932-09 100m x 1.00mm˛ Grey 16.5A Auto Single-core Cable

£28.64  Excl. VAT
  (£34.37 Inc. VAT)
RRP:  £32.18  Excl. VAT
Initial Savings:  £3.54
Earn 28 Loyalty Points
Available


Weight:  1.28 kg


Model:  0-932-09
Bar Code:  5056119131567
Part Number:  0-932-09
Brand:  Durite
Colour  Grey
Amperage  16.5A
Material  Copper/PVC


 Durite 16.5A Grey automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • Roll length: 100m.
  • 1.00mm² grey.
  • 16.5A automotive single-core cable.
  • 32 strands 0.20mm.
  • Outside diameter: 2.1mm.
  • To ISO 06722-4.

About The 1mm² Grey Thin Wall Electric Cable

 100 Metre reel of light-duty 16.5A Grey auto electrical thin wall cable, used for light current loads. The thin-wall configuration increases current load capabilities to a maximum of 16.5 Amps continuous. With a reduced but harder PVC coating, thin-wall cabling is now adopted for wiring looms and trees with modern vehicle manufacturers. Durite thin wall electrical cables are manufactured to ISO 6722-4 industry standards; they reduce the weight and volume of vehicle cable looms and have good overall resistance to petrol, diesel and lubricating oils.

 Used as a conductor wire on low amperage electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 16.5 Amps
Insulation Colour Grey
Wire 32/0.20mm copper
Cross-section 1.00mm²
Voltage 60 Volts DC maximum
Resistance 18.5mΩ/m at 20℃
Insulation Hard grade PVC to BS6746 Type 5.
Overall Diameter   2.1mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 100 Metres
Approvals ISO6722/4
Weight 1.27Kg
