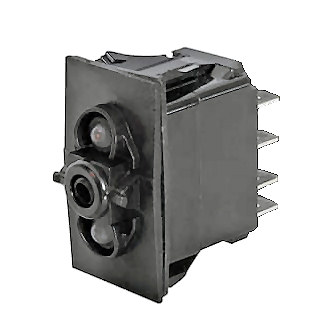

0-784-62 Durite On-Off-On DP LED Illuminated Rocker Switch Body 2 Lit Position

£8.00  Excl. VAT
  (£9.60 Inc. VAT)
RRP:  £9.64
Savings before Cart:  £1.64
Earn 8 Loyalty Points
Available

Weight:  20g


Model:  0-784-62
Bar Code:  5056119127614
Part Number:  0-784-62
Brand:  Durite
Colour:  Black
Voltage:  12V/24V DC
Amperage:  20A/10A


 Durite 12V and 24V DC LED illuminated double pole rocker switch body, two lit positions.

  • Rocker switch bodies to use in conjunction with coloured or legend rockers.
  • Function: on-off-on.
  • Dual voltage: 12V and 24V DC.
  • Rated 20A at 12V DC, 10A at 24V DC.
  • Double pole.
  • The illumination operates on function but can be left unilluminated if not required.
  • Suitable for accommodation into industry-standard panels.
  • Switches are IP66 protected from the front (dust-tight, water jet and splash-proof), the rear requires panel protection.
  • Image used for style purposes.
  • Sold in single packs.

Panel Cut-out Required

  • Width: 21.2mm
  • Height: 37.5mm

Associated Products

  • Suitable for 2 windows (top square, bottom strip) coloured or legend printed switch rockers, part numbers starting 0-796.
  • 0-798-10 end gang mounting frame.
  • 0-798-11 middle gang mounting frame.
  • 0-798-98 blanking plate for spacing or future additions.

 LED illuminated rocker switch panels give an impressive and professional finish to a vehicle or project dashboard. The large choice of rocker options allows users to select components needed to build the exact switch and panel look required.
