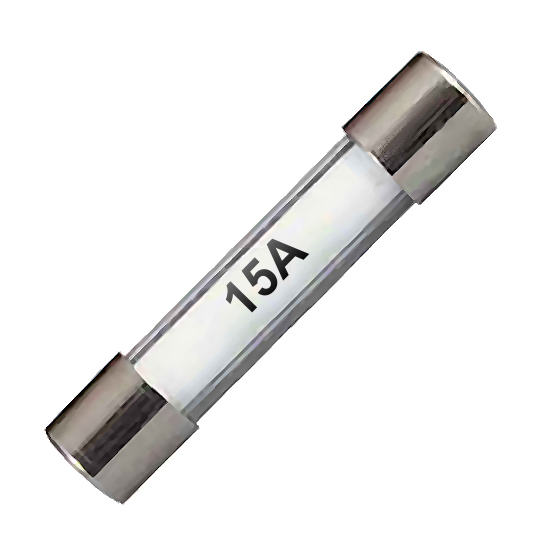

0-374-15 Pack of 10 32mm Standard Glass Fuses 15A

£2.53  Excl. VAT
  (£3.04 Inc. VAT)
RRP:  £2.84  Excl. VAT
Initial Savings:  £0.31
Earn 2 Loyalty Points
Available


Weight:  20 g





Model:  0-374-15
Bar Code:  5056119110050
Part Number:  0-374-15
Brand:  Durite
Colour:  Clear
Voltage:  12V/24V DC
Amperage:  15A
Material:  Glass/Nickel/Brass


 Durite 32mm standard 15 Amps glass fuse for automotive electrical surge protection.

  • Glass encased fuse element with nickel-plated brass end caps.
  • Continuous Rating: 15A.
  • Blow Rating: 30A.
  • Always check your equipment's manual before replacing fuses to determine which fuses you require.
  • Pack Quantity: 10 pieces.

Dimensions

  • Total Length: 32.0mm
  • Total Diameter: 6.5mm

About The 15A Standard 32mm Glass Fuse

 The Durite classic style glass fuse with 6.5mm diameter nickel-plated brass caps are historically used for surge protection, usually found mounted on vehicle PCB's and when used inline on automotive cables and vehicle wiring.

 The ratings for 15A continuous use is based on a circuit constant load being always-on, the 30A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
