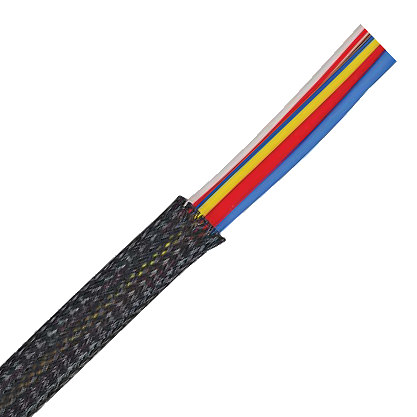

0-325-10 10m Black Expandable Flame Retardant Braided Sleeving 9.5mm ID

£16.57  Excl. VAT
  (£19.88 Inc. VAT)
RRP:  £18.62  Excl. VAT
Initial Savings:  £2.05
Earn 16 Loyalty Points
Available


Weight:  100 g





Model:  0-325-10
Bar Code:  5056119107296
Part Number:  0-325-10
Brand:  Durite
Colour:  Black
Material:  Polyethylene Terephthalate


 Durite Black expandable fire retardant braided sleeving.

  • Flame retardant.
  • Colour: Black.
  • PET braid: Polyethylene Terephthalate monofilament yarn.
  • Operating temperature -40 to 125℃.
  • Pack Quantity: 10 Metres, coil

Dimensions

  • Inside diameter: 9.5mm.
  • Minimum inside diameter: 4.8mm.
  • Maximum inside diameter: 15.9mm.

Specifications

Type Expandable braided sleeving
Material PET monofilament yarn
Colour Black
Expansion Ratio ~3:1 (small diameter) to 2:1 (large diameter)
Elongation 20%
Operating Temperature -40˚C to +125˚C
Melt Temperature 250˚C
Approvals UL E304566
