Durite Blue 8.00mm Ring Automotive Crimp Terminal | Re: 0-001-45

£3.36  Excl. VAT
  (£4.03 Inc. VAT)
RRP:  £3.78  Excl. VAT
Initial Savings:  £0.42
Earn 3 Loyalty Points
Available


Weight:  80 g


Model:  0-001-45
Bar Code:  5056119100433
Part Number:  0-001-45
Brand:  Durite
Colour  Blue
Material  Brass/Tin/PVC


 Durite coloured pre-insulated automotive ring terminal.

  • Conductor size: 1.5mm² to 2.5mm² (21-35 0.30mm).
  • Colour coded: blue.
  • Ring size: 8.00mm.
  • Best fit: M8 terminal posts.
  • To suit medium-duty automotive cable.
  • Pack quantity: 50, 100 and 1000 pieces.

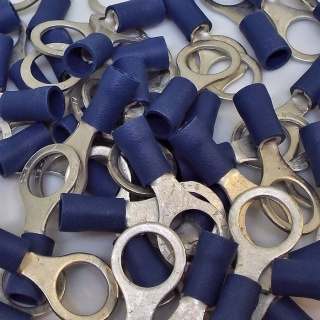

About The Blue Ring Crimp Terminal

 The blue 8mm ring terminals are used for the termination of medium-duty automotive electric cables. The ring terminal once crimped to the automotive cable, fits onto round component terminal posts. The terminal provides a secure fixed solution for adding components into a circuit and allows for easy assembly and disassembly of wiring loom components.

 The Durite brass ring crimping terminals with a blue coloured PVC sleeve created a secure crimp connection. The cost of the terminals are competitive with lower quality coloured crimp terminals and offer great value for money.
