SW84B-228T Albright Single-pole Double-throw Solenoid 48V - Prolonged

SW84B-228T Albright Single-pole Double-throw Solenoid 48V - Prolonged
SW84B-228T Albright Single-pole Double-throw Solenoid 48V - Prolonged
SW84B-228T Albright Single-pole Double-throw Solenoid 48V - Prolonged
£48.20 Excl. VAT
(£57.84 Inc. VAT)
Earn 48 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SW84B-228T
Bar Code
DNA
Part Number
SW84B-228T
Brand
Albright
Colour
Black
Voltage
48V DC
Amperage
100A
Material
Copper/Silver/Bakelite
Coil type
Prolonged (PO)
Weight
480 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

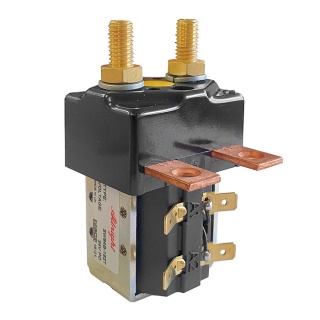

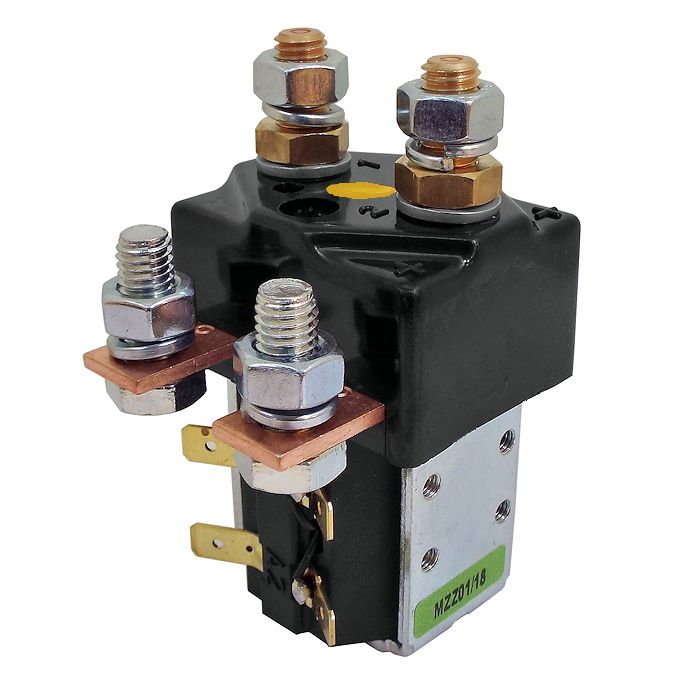

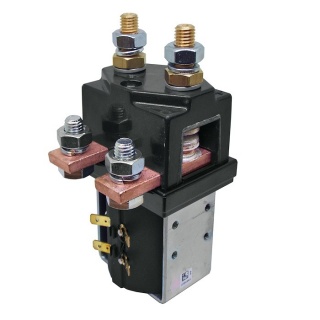

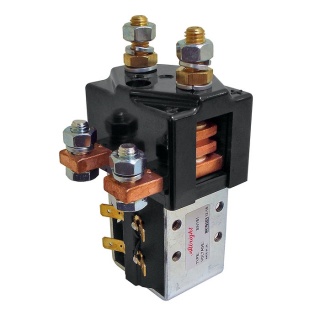

 Albright SW84B-228T single-pole, double-throw solenoid contactor with magnetic blowouts and textured tips, 48Vdc prolonged.

  • The SW84B-228T has been designed for 48V direct current (DC) loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW84B is suitable for switching Resistive, Capacitive and Inductive loads.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
  • Enclosed top cover with hardware.
  • Textured tip version

Associated Products

  • 2070-124 Auxiliary microswitch kit.
  • 2126-48A Mounting bracket.

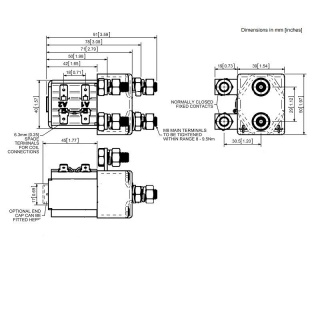

Dimensions

  • Height including terminals and coil base cap: 91mm.
  • Coil width: 40mm.
  • Cap width: 39mm.
  • Coil and cap depth, including fixed contact bars: 58mm.

Magnetic Blowouts

 These contactors are fitted with magnetic blowouts (denoted by the 'B' suffix in the SW84B range) across contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

About Prolonged (PO.) SW84B-228T Solenoids

 Prolonged (PO) use, up to 90% duty cycle and up to 54 minutes of continuous energisation. The coil is more powerful than continuous and weaker than intermittent equivalent. The return spring is stronger than continuous but weaker than intermittent.

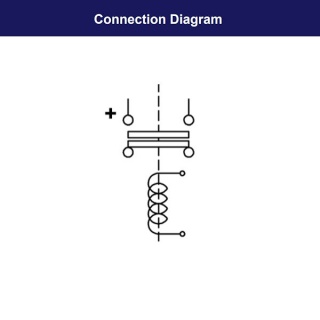

 The SW84B has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or mounting brackets purchased as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. Please note Normally Closed contacts are not suited to make and break the load.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SP - DT
Voltage 48V D.C.
Coil Type Prolonged
Amps 100 Amps
Coil Resistance (Ohms) 42
Pull-In Voltage (V) 32.0 Max.
Drop Out Voltage (V) 12.0 Max.
Coil Power Dissipation (W) 13.24
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: 40mV
NC: 50mV
Operating Ambient Temperature -40 to +60℃
Weight 480g
Application Interrupted Uninterrupted
Thermal Current Rating 100A 125A
Intermittent Current Rating:
30% Duty 185A 230A
40% Duty 160A 200A
50% Duty 140A 175A
60% Duty 130A 160A
70% Duty 120A 150A
