SW60B-2 Albright 12V DC Single-acting Miniature Solenoid Continuous 80A

£20.94  Excl. VAT
  (£25.13 Inc. VAT)
 Excl. VAT

Earn 20 Loyalty Points
No stock


Weight:  200 g





Model:  SW60B-2
Bar Code:  DNA
Part Number:  SW60B-2
Brand:  Albright
Colour:  Black
Voltage:  12V DC
Amperage:  80A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

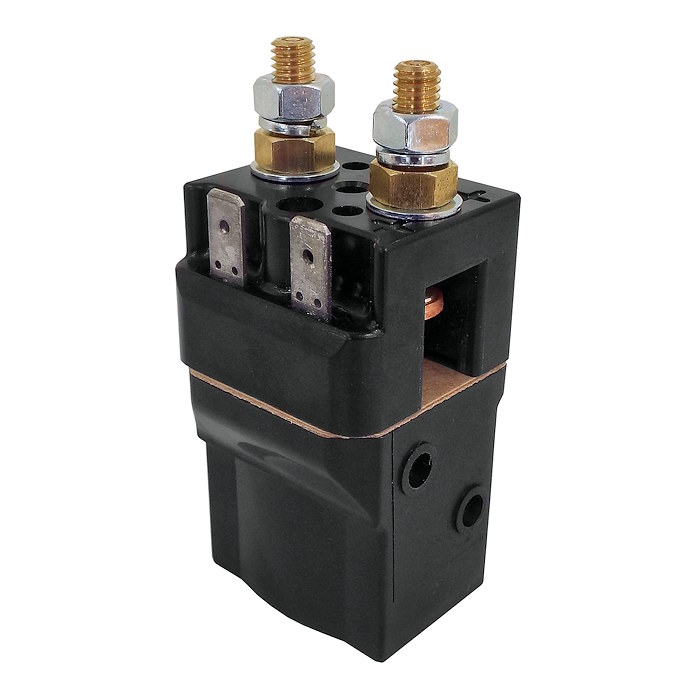

 Albright SW60B-2 series 12Vdc miniature single-acting contactor, continuous.

  • Albright SW60B series contactors have been designed for a compact DC contactor application. They are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

Dimensions

  • Height, including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

Magnetic Blowouts

 These open-case contactors are double break configurations and fitted with magnetic blowouts (denoted by the 'B' suffix in the SW60B range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive, and the positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SW60B Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW60B features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60B has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 12V D.C.
Coil Type Continuous
Amps 80A
Coil Resistance (Ohms) 21
Pull-In Voltage (V) 8.0 Max.
Drop Out Voltage (V) 3.0 Max.
Coil Power Dissipation (W) 6.86
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
Less than 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 198g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A
