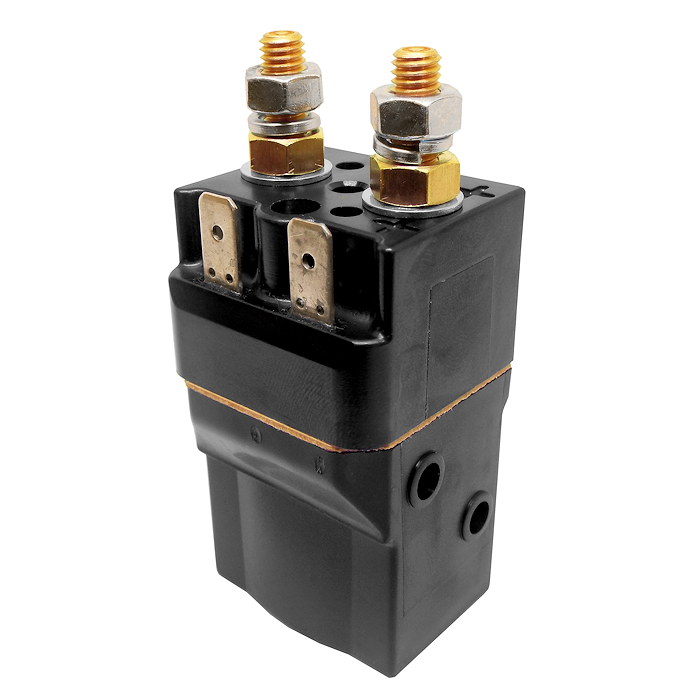

SW60-8 Albright 48V DC Single-acting Miniature Solenoid Continuous 80A

£20.69 Excl. VAT

(£24.83 Inc. VAT)

Earn 20 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks

Model

SW60-8

Bar Code

DNA

Part Number

SW60-8

Brand

Albright

Colour

Black

Voltage

48V DC

Amperage

80A

Material

Copper/Silver/Bakelite

Coil type

Continuous

Ship Weight

190 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

SW60-8 series 48V miniature single-acting contactor.

Albright SW60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
All the contactors are manufactured to a very high standard and employ best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
Repair kit: not available on this unit.

Dimensions

Height including terminals and coil base cap: 81.4mm.
Coil width: 35.9mm.
Cap width: 35.9mm.
Depth: 32.8mm.

Associated Products

3060-94 Standard "U" shaped mounting bracket.
3060-340 Standard "DIN" rail mounting bracket.
3060-382A Curved mounting bracket.
2070-776 "U" shaped mounting bracket with extensions.

About Continuous (CO.) SW60 Solenoids

Continuous contactors, by design, are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

The SW60 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type

NO - SP - ST

Voltage

48V D.C.

Coil Type

Continuous

Amps

80A

Coil Resistance (Ohms)

410

Pull In Voltage (V)

32.0 Max.

Drop Out Voltage (V)

12.0 Max.

Coil Power Dissipation (W)

5.62

Typical Pull-In Time

15ms

Typical Voltage Drop Per Pole
Across New Contacts At 80A

< 40mV

Operating Ambient Temperature

-40 to +60℃

Guideline Weight

198g

Application

Uninterrupted

Thermal Current Rating

80A

Intermittent Current Rating

30% Duty

145A

40% Duty

125A

50% Duty

115A

60% Duty

105A

70% Duty

95A
