SW182B-3 Albright Double Acting Motor Reversing Solenoid 24V Intermittent

£134.36  Excl. VAT
  (£161.23 Inc. VAT)


Earn 134 Loyalty Points
Pre-order
Despatch: 6 to 8 Weeks

Weight:  1.83kg


Model:  SW182B-3
Part Number:  SW182B-3
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  150A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

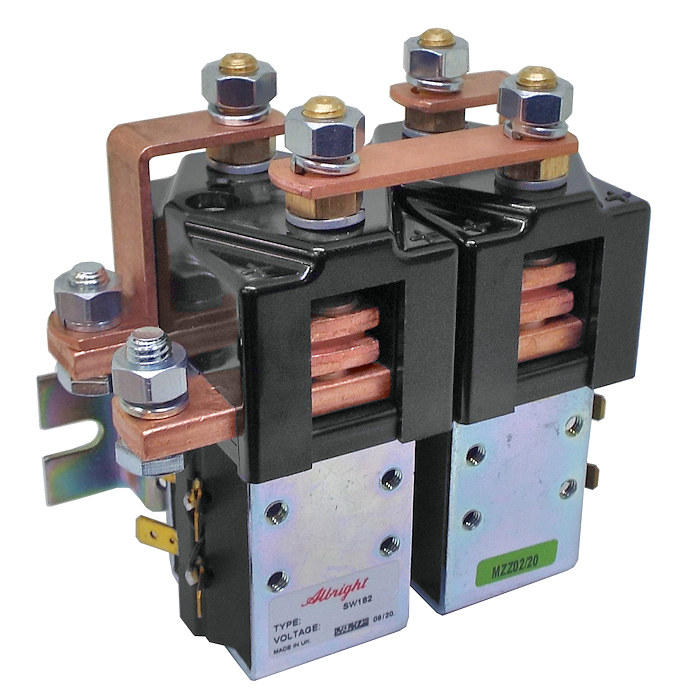

 SW182B-3 double acting strapped pair solenoid contactor 24V intermittent.

  • Double acting strapped pair 24 volt dc contactor for motor reversing.
  • The SW182 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2180-44.
  • Auxiliary switch kit part number: 2180-796 (1 kit does 1 x coil).

Dimensions

  • Height including terminals and coil base cap: 121.5mm.
  • Coil width including bars and bracket: 124.5mm.
  • Cap width: 2 x 40mm.
  • Total depth including bracket: 66mm.

About the Intermittent SW182B-3 Reversing Contactors

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW182B is a configuration of two 'Single Pole, Double Throw' type contactors on a common bracket for motor reversing. The SW182B features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity.

 The SW182B main contact circuit, designed for motor reversing, is such that it has a built in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

 The SW182B has M8 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Magnetic Blowouts

 These contactors are fitted with magnetic blowouts (denoted by 'B' suffix in the SW182B range) across contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

Specifications

Device Type SW182B - Paired Single Pole Double Throw Contactor
Voltage 24V D.C.
Coil Type Intermittent
Amps 150A
Coil Power Dissipation 30 - 40 Watts
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Normally Open: 30mV
Normally Closed: 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 1.68kg
Application Uninterrupted
Thermal Current Rating 150A
Intermittent Current Rating:
30% Duty 275A
40% Duty 240A
50% Duty 225A
60% Duty 200A
70% Duty 180A
