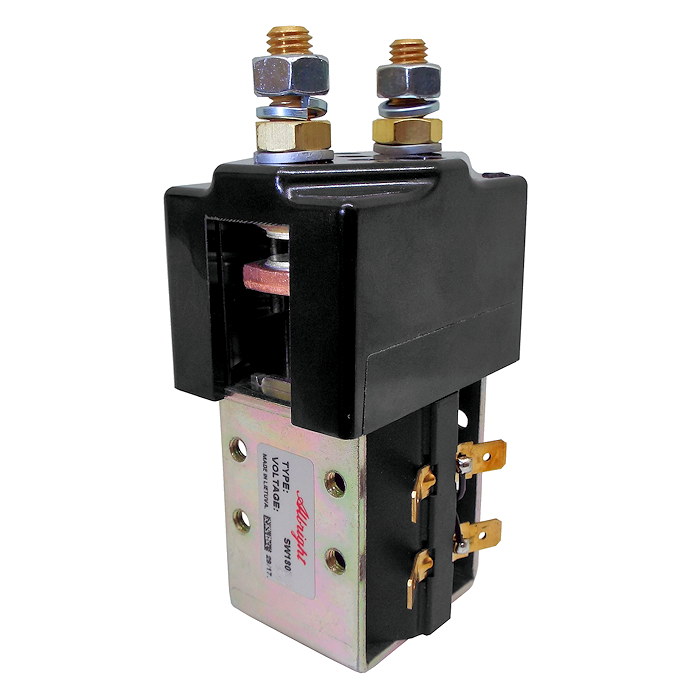

SW180-8 Albright Single-acting Solenoid Contactor 48V Continuous

£51.14 Excl. VAT

(£61.37 Inc. VAT)

Earn 51 Loyalty Points

No stock

Model

SW180-8

Bar Code

DNA

Part Number

SW180-8

Brand

Albright

Colour

Black

Voltage

48V DC

Amperage

150A

Material

Copper/Silver/Bakelite

Coil type

Continuous

Ship Weight

640 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

Albright SW180-8 48Vdc 150 Amps single-acting SPST solenoid contactor, continuous.

The SW180 series of contactors has been designed for direct current loads, particularly motors, as used on small electric vehicles such as industrial trucks, airport tractors, etc. They have double-breaking contacts with Silver-alloy contact tips, which are weld-resistant, hardwearing and have excellent conductivity.
The contactors are compact and fully serviceable, with various spare parts available.
Repair contact kit part number: 2180-42.
Auxiliary switch kit part number: 2180-796.
Mounting bracket available: 2159-47.

Dimensions

Height, including terminals and coil base cap: 122mm.
Coil width: 45mm.
Cap width: 61mm.
Cap depth: 45mm.

About Continuous (CO.) SW180 Solenoids

Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

The SW180 has been designed for direct current loads, including motors, as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180 is suitable for switching Resistive, Capacitive and Inductive loads.

The SW180 features single-pole, single-throw, double-breaking main contacts with Silver-alloy tips, which are weld-resistant, hardwearing and have excellent conductivity. The SW180 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type	NO - SP - ST
Voltage	48V D.C.
Coil Type	Continuous
Amps	150 Amps
Coil Resistance (Ohms)	150
Pull-In Voltage (V)	32.0 Max.
Drop Out Voltage (V)	12.0 Max.
Coil Power Dissipation (W)	15.36
Typical Pull-In Time	30ms
Typical Voltage Drop Per Pole Across New Contacts At 100A	30mV
Operating Ambient Temperature	-40 to +60℃
Weight	640g
Application	Uninterrupted
Thermal Current Rating	150A
Intermittent Current Rating:
30% Duty	275A
40% Duty	240A
50% Duty	225A
60% Duty	200A
70% Duty	180A
