SU80B-5000 Albright Single-acting 12V 150A Contactor - Continuous with Blowouts

£43.18  Excl. VAT
  (£51.82 Inc. VAT)
 Excl. VAT

Earn 43 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  400 g


Model:  SU80B-5000
Bar Code:  DNA
Part Number:  SU80B-5000
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  150A
Material  Copper/Silver/Bakelite/Steel
Coil type  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

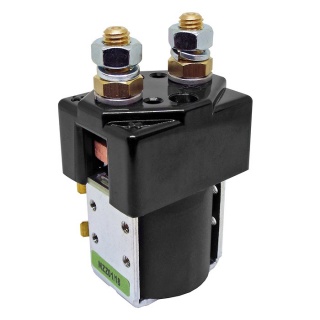

 Albright SU80B-5000 single-acting 12 Volts DC 150 Amps solenoid contactor with magnetic blowouts, continuous.

  • The SU80B series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
  • Auxiliary switch kit part number: 2070-124.

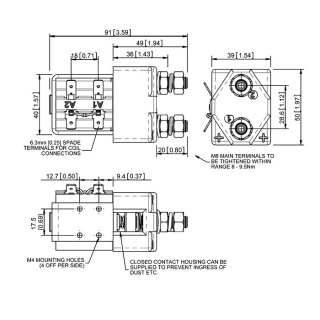

Dimensions

  • Height including terminals and coil base cap: 91mm.
  • Coil width: 40mm.
  • Cap width: 50mm.
  • Cap depth: 39mm.

Magnetic Blowouts

 These contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the SU80B range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive and the Positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SU80B Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SU80B is an up-rated version of the SW80B Contactor designed for Interrupted and Uninterrupted loads. The SU80B has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or by steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST NO
Voltage 12V D.C.
Coil Type Continuous
Amps 150 Amps
Coil Resistance (Ohms) 14
Pull-In Voltage (V) 8.0 Maximum
Drop Out Voltage (V) 3.0 Maximum
Coil Power Dissipation (W) 10.29
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 400g
Application Interrupted Uninterrupted
Thermal Current Rating 150A 200A
Intermittent Current Rating:
30% Duty 275A 365A
40% Duty 235A 315A
50% Duty 210A 280A
60% Duty 190A 260A
70% Duty 180A 240A
