SU60-2439P Albright 48V DC Single-acting Miniature Solenoid 100A - Prolonged

SU60-2439P Albright 48V DC Single-acting Miniature Solenoid 100A - Prolonged
SU60-2439P Albright 48V DC Single-acting Miniature Solenoid 100A - Prolonged
SU60-2439P Albright 48V DC Single-acting Miniature Solenoid 100A - Prolonged
£24.58 Excl. VAT
(£29.50 Inc. VAT)
Earn 24 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SU60-2439P
Bar Code
DNA
Part Number
SU60-2439P
Brand
Albright
Colour
Black
Voltage
48V DC
Amperage
100A
Material
Copper/Silver/Bakelite
Coil type
Prolonged (PO)
IP Protection
IP66
Weight
210 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

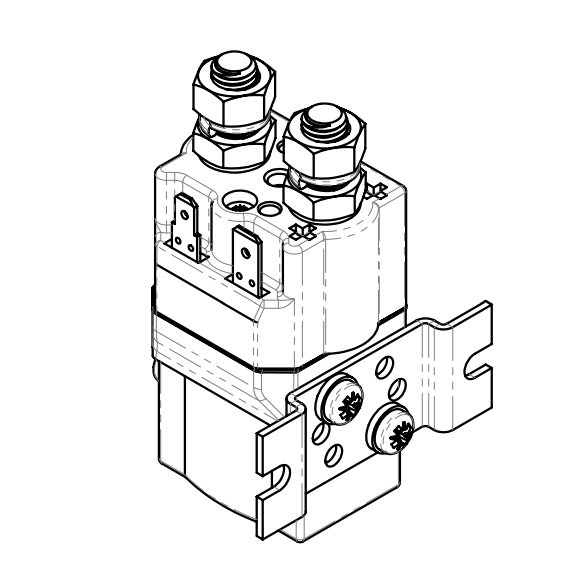

 Albright SU60-2439P series miniature 48 Volts DC 100 Amps single-acting contactor, sealed to IP66, prolonged.

  • The SU60P is a high-rated freestanding compact contactor following the established design of the SW60P. It is sealed to IP66 and has been designed for direct current loads in more arduous environments.
  • Devised for both interrupted and uninterrupted applications, the SU60P is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include motors used on small electric vehicles and hydraulic power packs.
  • Due to its sealed nature and low cost, repair kits are not available for the SU60P.
  • Energising terminals: Left-hand coil terminal 4.8mm, right-hand coil terminal 6.3mm.

Dimensions

  • Height, including terminals and coil base cap: 84mm.
  • Coil width: 36mm.
  • Cap width: 36mm.
  • Depth: 33mm.

About Prolonged (PO.) SU60P Solenoids

 Prolonged use for up to 90% duty cycle, up to 54 minutes of continuous energisation. The coil is more powerful than continuous and weaker than intermittent equivalent. The return spring is stronger than continuous but weaker than intermittent.

 The SU60P features single-pole double-breaking main contacts with Silver-alloy tips, which are weld-resistant, hardwearing and have excellent conductivity. It features an enclosed top cover and offers environmental protection to IP66. Mounted using a supplied bracket, mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type
NO - SP - ST
Voltage
48V D.C.
Coil Type
Prolonged
Amps
100A
Coil Resistance (Ohms)
225
Pull In Voltage (V)
32.0 Maximum
Drop Out Voltage (V)
14.0 Maximum
Coil Power Dissipation (W)
10.24
Typical Pull-In Time
15ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Less than 50mV
Operating Ambient Temperature
-40 to +60℃ (guide)
Guideline Weight
217g
Application
Uninterrupted
Thermal Current Rating
100A
Intermittent Current Rating

30% Duty
180A
40% Duty
160A
50% Duty
140A
60% Duty
130A
70% Duty
120A
