SU288-3 Albright 28Vdc Bank of 3 Single Pole Solenoid Contactors - Continuous
£217.86 Excl. VAT (£261.43 Inc. VAT)
Excl. VAT
Earn 217 Loyalty Points
| |
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 2.10 kg
Model: SU288-3
Bar Code: DNA
Part Number: SU288-3
Brand: Albright
Colour: Black
Voltage: 28V DC
Amperage: 250A
Material: Copper/Silver/Bakelite/Steel
Coil type: Continuous
| Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

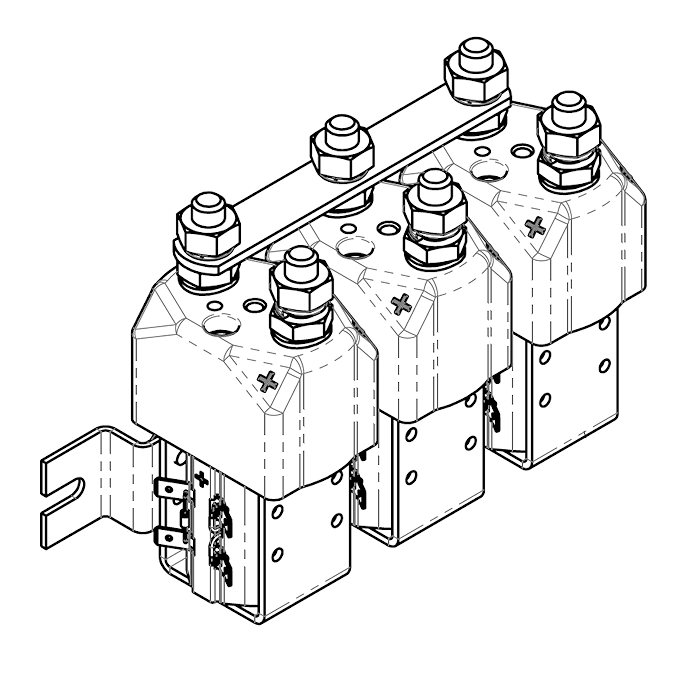

Albright SU288-3 28Vdc 250 Amps single-acting solenoid contactors in a strapped bank of 3, continuous.
- The SU288 is a strapped SU280 series of contactors, that have been designed for direct current loads, particularly motors used on small electric vehicles such as industrial trucks, airport tractors, etc.; they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- 3 SU280 contactors strapped together to form a bank on one common bracket.
- Enclosed top covers fitted.
- Diode supression fitted.
- Tripple link fitted accross the Negative (-)
Dimensions
- Height 128mm.
- Width: 190.5mm.
- Depth: 74mm.
About Continuous (CO.) SU280 Solenoids
Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M5 tapped holes in the switch frame together with a range of available mounting brackets. Mounting can be vertical or horizontal. When vertical, the M10 contact studs should point upwards.
| Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Device Type | SP - ST - NO |
| Voltage | 28V D.C. |
| Coil Type | Continuous |
| Amps | 250 Amps |
| Coil Resistance (Ohms) | 54 |
| Pull-In Voltage (V) | 18.0 Max. |
| Drop Out Voltage (V) | 7.0 Max. |
| Coil Power Dissipation (W) | 14.52 |
| Typical Pull-In Time | 30ms |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 2.1kg |
| Application | Interrupted | Uninterrupted |
| Thermal Current Rating | 250A | 350A |
| Intermittent Current Rating: |
| 30% Duty | 450A | 640A |
| 40% Duty | 395A | 555A |
| 50% Duty | 355A | 495A |
| 60% Duty | 325A | 450A |
| 70% Duty | 300A | 420A |
