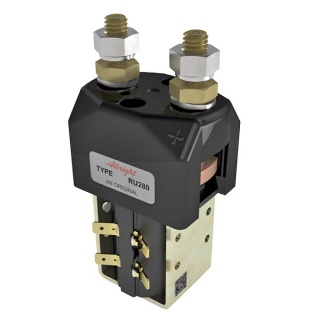

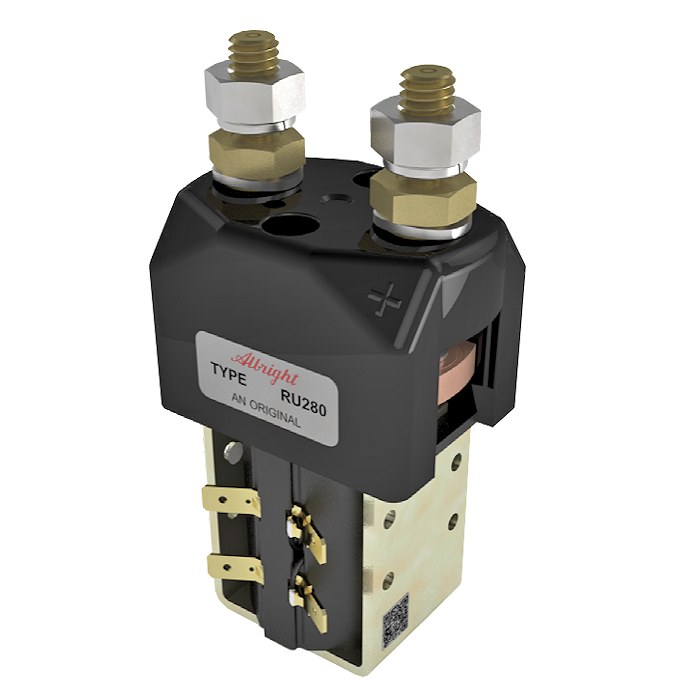

RU280-5001 Albright Single-acting 12V 350A Contactor - Intermittent

£71.03  Excl. VAT
  (£85.24 Inc. VAT)
 Excl. VAT

Earn 71 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  760 g


Model:  RU280-5001
Bar Code:  DNA
Part Number:  RU280-5001
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  350A
Material  Copper/Silver/Bakelite/Steel
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright RU280-5001 single-acting 12Vdc 350 Amps solenoid contactor, intermittent.

  • The Reduced Silver series are suitable for applications where infrequent switching is specified. In such applications the degradation of the tip is minimal and therefore a higher volume of silver is unnecessary. Developed for Uninterrupted current applications the RU280 is typically used in line contactors or Power Distribution Systems.
  • Contacts repair kit part number: 2182-919
  • Auxiliary switch kit part number: 2155-352.

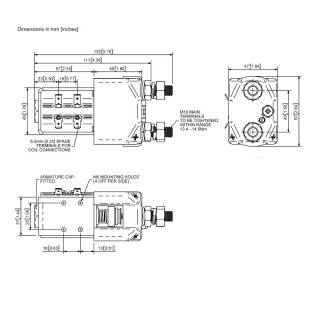

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.
  • Cap depth: 47mm.

About Intermittent (Int.) RU280 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M5 tapped holes in the switch frame together with a range of mounting brackets. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

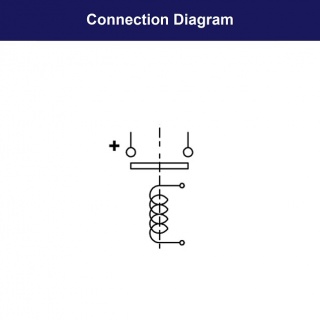

Device Type SPST NO
Voltage 12V D.C.
Coil Type Intermittent
Amps 350 Amps
Coil Resistance (Ohms) 5
Pull-In Voltage (V) 7.0 Maximum
Drop Out Voltage (V) 3.0 Maximum
Coil Power Dissipation (W) 28.80
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 755g
Application Uninterrupted
Thermal Current Rating 350A
Intermittent Current Rating:
30% Duty 640A
40% Duty 555A
50% Duty 495A
60% Duty 450A
70% Duty 420A
