Durite Extra Flexible Convoluted Split Tubing 13NW | Re: 0-331-46

£22.30  Excl. VAT
  (£26.76 Inc. VAT)
RRP:  £25.63
Savings before Cart:  £3.33
Earn 22 Loyalty Points
Available


Weight:  800 g


Model:  0-331-46
Bar Code:  5056119152142
Part Number:  0-331-46
Brand:  Durite
Size:  13NW
Colour:  Black
Material:  Polyamide 6

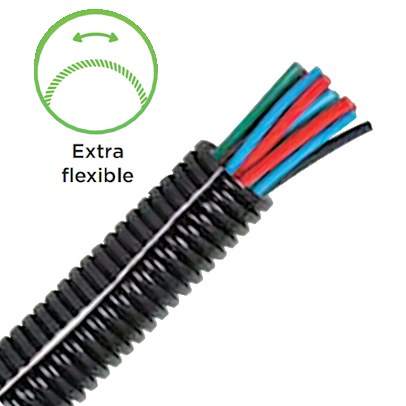

 Durite black extra flexible polyamide 6 convoluted split tubing.

  • Protects electric cables and looms against external elements.
  • NW: 13 (nominal width 13mm).
  • Inside diameter: 11.8mm, outside diameter: 16.0mm.
  • Packed quantity: 25m and 100m roll.
  • Colour: black.
  • Material: polyamide 6.

Specifications

Type Convoluted split tubing
Application Protection of cable
Nominal width (NW) 13.0mm
Inside diameter (ID) 11.8mm
Outside diameter (OD) 16.0mm
Material Polyamide 6 (nylon)
Temperature range Minus 40 to +120℃
Flame retardant Yes
Halogen free Yes
Permanent vibration DIN 53442
UV resistance DIN EN ISO 8580
