Durite 30m 7-Core Thin-Wall PVC Trailer Cable | Re: 0-997-20

£157.26 Excl. VAT

RRP ~~£176.70~~ Excl. VAT

Initial Savings

£19.44

(£188.71 Inc. VAT)

Earn 157 Loyalty Points

Available

Model

0-997-20F

Bar Code

5056119169058

Part Number

0-997-20F

Brand

Durite

Colour

Black/Brown/Blue/White/Yellow/Green/Red

Material

Copper/PVC

Weight

7.68 kg

Durite 30 Metres 7-core Thin-wall PVC trailer cable with 5 x 1.5mm² and 2 x 4mm² PVC coated wires.

7-core, EBS.
5 x 21/0.30mm 1.50mm² and 2 x 56/0.30mm 4.00mm².
Colour-coded cables; Black, Yellow, White, White/Green, White/Brown, Red and Brown.
Multicore PVC auto cable to BS6862/ISO6722:2006 Class B (Thin Wall).
Roll length: 30m.

Specifications

Type	7 core EBS Thin Wall cable
Wire	5 x 21/0.30mm, 2 x 56/0.30mm copper
Cross Section	1.50/4.00mm²
Current Rating	21/39 Amps
Voltage (Maximum)	60 Volts DC
Resistance	12.7/4.7mΩ/m at 20° C
Insulation	Calcium Zinc based insulation compound to ISO6722-2000 Class B Sheath PVC

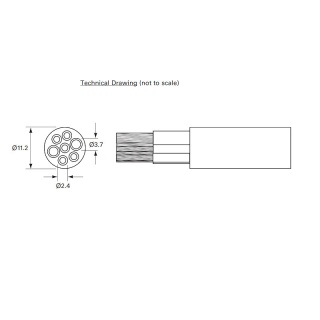

Overall Diameter	11.2mm
Temperature	up to +105 Degree C (200° C for 55 mins)
Weight	7.68
