DC182-781L Albright 24V DC Intermittent Motor-reversing Solenoid Contactor
Weight: 1.86 kg
(1 Review)
Model: DC182-781L
Bar Code: DNA
Part Number: DC182-781L
Brand: Albright
Colour Green
Voltage 24V DC
Amperage 150A
Material Copper/Silver/Bakelite
Coil type Intermittent
| Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

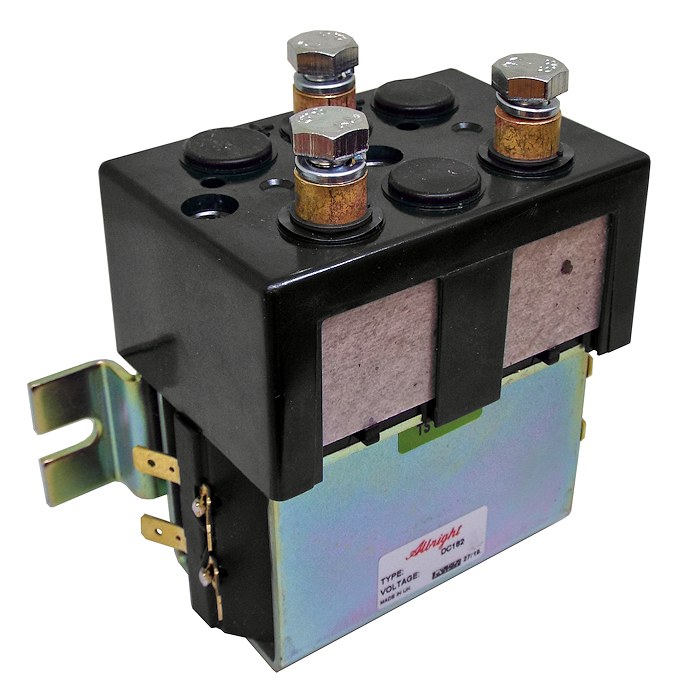

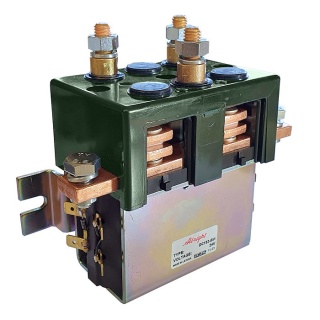

Albright's DC182-781L, 24 Volts DC motor-reversing intermittent solenoid contactor with large tips, dust shields and an integral bracket.
- The DC182 series of contactors has been designed for direct current loads, particularly motors used on electric vehicles such as industrial trucks, airport tractors, and such.
- They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.

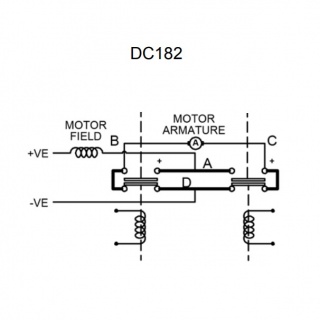

- The DC182 main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energised simultaneously, the contact arrangement is open circuits.
- Large tip version (on the Normally Open side only) with a low-duty cycle coil.

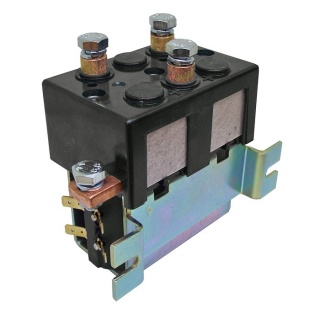

- Integral bracket, no tapped holes on coil casing.
- Large tip version with low-duty cycle coil - 25%.
- The top cover is reversed, with the 'T' contact next to the bracket, positive next to the bracket and the bar contact on the right-hand side.
About The DC182-781L Motor Reversing Solenoid
Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor, but rewiring will be required.

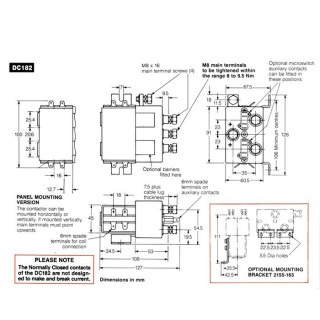

This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical. When vertical the M8 contact studs should point upwards.
| Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Device Type | NO - SP - DT |
| Voltage | 24V D.C. |
| Coil Type | Intermittent, 25% duty. |
| Amps | 150A |
| Coil Resistance (Ohms) | 13 |
| Pull-In Voltage (V) | 14.0 Max. |
| Drop Out Voltage (V) | 6.0 Max. |
| Coil Power Dissipation (W) | 44.31 |
| Typical Pull-In Time | 30ms |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | NO: < 30mV
NC: < 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Guideline Weight | 1.66kg |
| Application | Uninterrupted |
| Thermal Current Rating | 150A |
| Intermittent Current Rating: |
| 30% Duty | 275A |
| 40% Duty | 240A |
| 50% Duty | 225A |
| 60% Duty | 200A |
| 70% Duty | 180A |
