2072-447 Pair of Albright DC88 Solenoid Mounting Brackets

£2.37  Excl. VAT
  (£2.84 Inc. VAT)


Earn 2 Loyalty Points
30 in stock


Weight:  50 g


Model:  2072-447
Bar Code:  DNA
Part Number:  2072-447
Brand:  Albright
Colour:  Metallic
Material:  Steel

Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

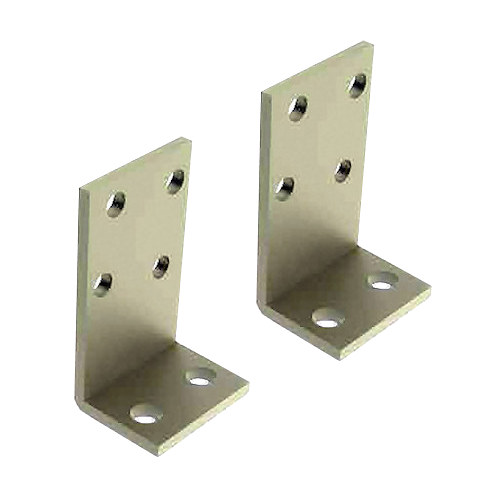

  Switch solenoid L-shaped bracket kit for mounting Albright busbar and some DC series contactors.

  • L-shape bracket for mounting DC88, DC92, SW140, SW150, SW225, SW300, RW150, RW250 and RW300 busbar series solenoids to panels or bulkheads.
  • Supplied with mounting screws.
  • N. B. Some solenoids are supplied with a bracket, please refer to main product images.
  • Sold as seen, 2 brackets and 8 screws and washers.

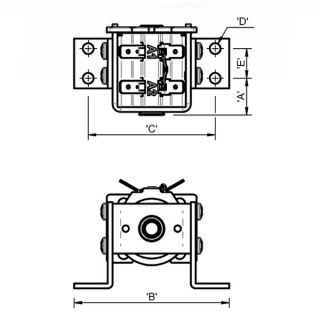

Technical Drawing Dimensions

  • A: 18.7mm
  • B: 79mm
  • C: 64.8mm
  • D: Ø5.5mm
  • E: 15.1mm

Associated Products

  • DC88
  • DC92
  • SW140
  • SW150
  • SW225
  • SW250
  • SW300
  • RW150
  • RW250
  • RW300



 N.B. Not used or suitable for solenoids that have integral and fabricated coil brackets.
