2072-421 Albright SU80 Series Contact Kit

£17.79  Excl. VAT
  (£21.35 Inc. VAT)


Earn 17 Loyalty Points
6 in stock


Weight:  100 g


Model:  2072-421
Bar Code:  DNA
Part Number:  2072-421
Brand:  Albright
Colour:  Metallic
Material:  Copper/Brass/Silver

Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

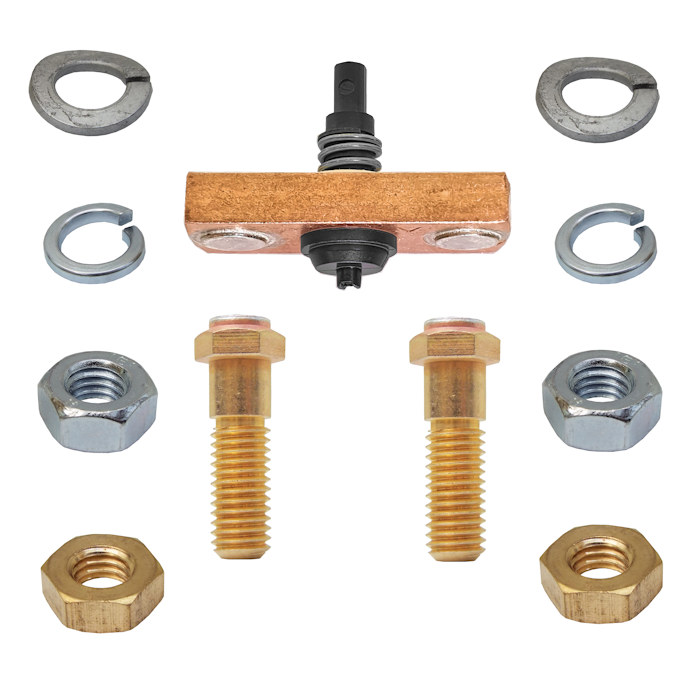

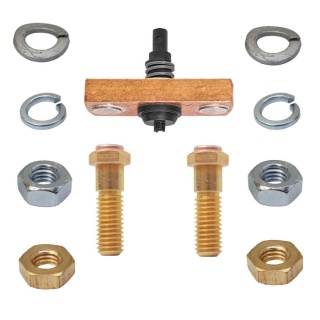

Albright SU80 series contact kit.

  • Consists of one moving contact (1500-12), and two contact studs with nuts and washers (2070-46).
  • Not for use on sealed IP protected solenoids.
  • With silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.

Approximate Dimensions

  • Brass stud length (including silver alloy tip): 31.5mm
  • Thread: M8
  • Moving contact length (copper bar): 39.5mm
  • Moving contact width: 16.0mm
