0-961-58 30m Black Silicon Insulated Suppressive Ignition Cable 8mm OD

0-961-58 30m Black Silicon Insulated Suppressive Ignition Cable 8mm OD
£64.79 Excl. VAT
RRP £72.80 Excl. VAT
Initial Savings
£8.01
(£77.75 Inc. VAT)
Earn 64 Loyalty Points

Available
Model
0-961-58
Bar Code
5056119144260
Part Number
0-961-58
Brand
Durite
Colour
Black
Material
Carbon/Silicon
Weight
2.62 kg

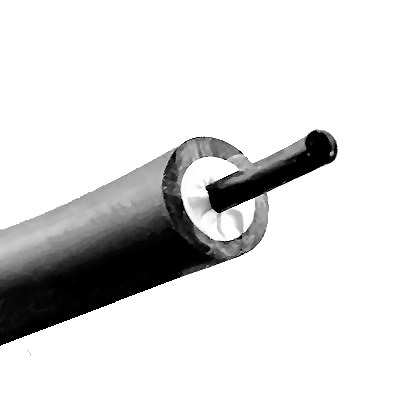

 Durite 30 Metres roll of 8mm OD Black silicon sheathed suppressive ignition cable.

  • Roll length: 30m.
  • Silicon sheathed.
  • 8.00mm Outside Diameter.
  • To BS6862.
  • ISO3808-2 1980 (E) classification-class E type 3.
  • Colour: Black.

Specification

  • Operating temperature: -40 to 220℃.

Insulation-primary

  • Primary insulation consists of a heat-curable silicone rubber jacket (HCSR).

Insulation-secondary

  • Secondary insulation consists of a silicone rubber jacket pigmented black.

Dimensions

  • finished diameter 8.00mm, 0.3mm.

Core Resistance

  • 9.8Kilohms to 23.0Kilohms, (meeting SAE J557 specification), Now superseded, no longer stating resistance value.
  • All required RFI suppression characteristics met.

Electrical Properties of Silicone Insulation

  • Volume resistivity: Ohms-cm = over 1 times 1014.
  • Electric strength: Volts-mil = 500.
  • Dielectric constant: 60Hz = 2.95.
  • Power factor: 60Hz = 0.005.
  • Tensile strength: 500N to the elastic threshold.
  • Breakdown voltage: 40Kv.

 Conductor: A uniformly graphite-treated glass fibre roving over-braided with glass fibre yarn, subsequently coated with an extruded conductive silicone rubber jacket. The conductive silicone rubber jacket prevents carbon loss and provides good mechanical and electrical contact with applied terminals.
