0-326-41 Pack of 25 Nylon Clamping Chassis Clips 10NW

£8.53  Excl. VAT
  (£10.24 Inc. VAT)
RRP:  £9.58  Excl. VAT
Initial Savings:  £1.05
Earn 8 Loyalty Points
Available


Weight:  30 g


Model:  0-326-41
Bar Code:  5056119107487
Part Number:  0-326-41
Brand:  Durite
Size  10NW
Colour  Black
Material  Nylon

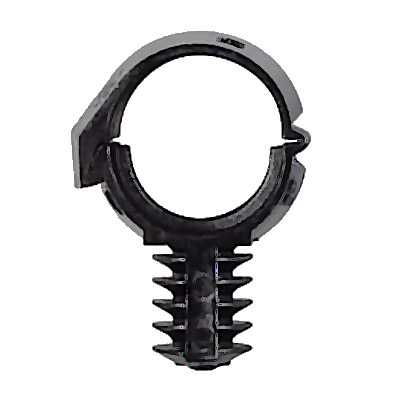

 Durite auto electrical nylon clamping chassis clips, 10NW. Black nylon clamping chassis clips for all types of tubing of the compatible size listed. The clips are designed to push-fit into a pre-drilled hole to retain cable tubing, keeping the cables protected and tidy.

  • Suitable for tubing size: 10NW.
  • Black nylon.

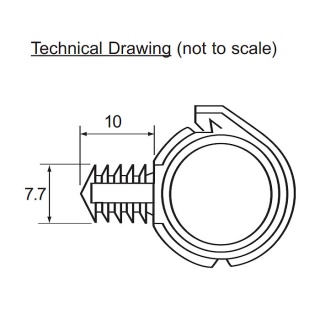

  • Requires: 6mm drilled hole, push depth: 10mm.
  • Pack Quantity: 25 pieces.

About The Tubing Chassis Clips

 Nominal width (NW) 10mm clip locking automotive chassis clamps for retaining cable tubing securely to the vehicle chassis, used when laying a loom run of electric cables for lighting or auxiliary equipment.

Specifications

Type Clamping clip
Port Nominal Width 10.0mm
Application Support for convoluted tubing
Closure Snap together
Material Nylon (Polyamide 66)
Recommended Fixing Hole 6mm diameter
Temperature Range Minus 40 to +125℃
Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

0-485-91 Push On-Off Illuminated Surface Mounted Switch 1.0A
0-485-91 Push On-Off Illuminated Surface Mounted Switch 1.0A

12V-24Vdc Push-On and Push-Off illuminated surface mounted switch. 1A LED indicator push switch with a self-adhesive pad. Supplied with 90cm leads.

Available
 Reference: 0-485-91 £9.06   £8.06


Related Products

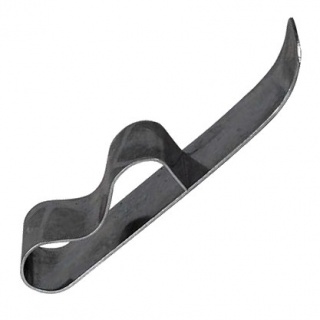

0-004-75 Pack of 25 Cable Chassis R-Clips 56mm x 12.7mm
0-004-75 Pack of 25 Cable Chassis R-Clips 56mm x 12.7mm

Durite cable chassis R-clips size: 56mm by 12.7mm. Spring steel chassis R-style cable clips for tidying up loose vehicle wiring.

Available
 Reference: 0-004-75 £16.24   £14.45

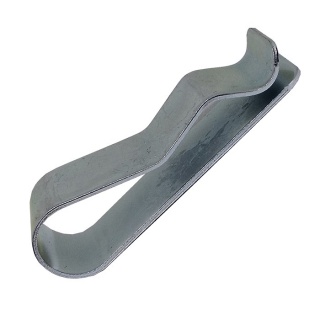

0-004-77 Pack of 25 Cable Chassis R-Clips 41mm x 12.7mm
