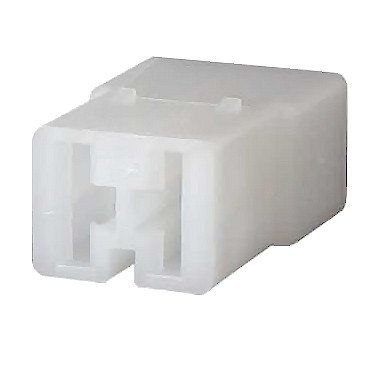

0-011-12 Pack of 5 6.3mm Female Blade Terminal Housing 2-way

£1.48 Excl. VAT
RRP £1.66 Excl. VAT
Initial Savings
£0.18
(£1.78 Inc. VAT)
Earn 1 Loyalty Points

Available
Model
0-011-12
Bar Code
5056119102567
Part Number
0-011-12
Brand
Durite
Colour
White
Voltage
12V/24V DC
Amperage
20A
Material
Nylon
Weight
10 g

 Durite 6.30mm white nylon female blade terminal housing.

  • Blade or spade type terminal housing.
  • Material: White nylon
  • To suit 6.30mm female blade locking terminals.
  • 2-way connection.
  • Pack Quantity: 5 pieces.

Suitable Female Receptacle Terminals To Purchase For This Unit

  • 0-011-23 Female terminals, 0.65mm² to 1.00mm² cable.
  • 0-011-24 Female terminals, 1.00mm² to 2.50mm² cable.

About The Standard Nylon Blade Terminal Connector

 Durite's two-way nylon female blade (often referred to as spade) terminal housing is rated and identified by our available standard automotive cable sizes, for example; they will take by accommodation a cable terminal entry size of up to 2.50mm² standard cable strand configuration, to a maximum of 21.75A per single terminal when including a thin wall (higher amperage) cable construct.

 When a multiple blade connector (multiple cables) version is used, recommendations are not to exceed 17.5A per terminal, which is ample for most vehicle internal lighting and auxiliary component applications. A general rating of 20A continuous use has been applied to the store blade terminal range, for guidance and in conjunction with the above information.


Delivery
UK Mainland Postage Offer

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.




International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

Also Bought

0-011-02 Pack of 5 6.3mm Male Blade Terminal Housing 2-way
0-011-02 Pack of 5 6.3mm Male Blade Terminal Housing 2-way

Durite 6.30mm 2-way standard male automotive blade or spade terminal housing. White nylon connector for brass locking terminals.

Reference: 0-011-02
£1.66
Excl VAT
Available
6.3mm Push-On Female Blade Terminals From 1.00mm˛ | Re: 0-011-24

Durite 6.3mm larger female push-on blade or spade terminals for female blade housings. For 1.00mm² to 2.50mm² automotive cables and vehicle wiring.

Reference: 0-011-24
£5.57
Excl VAT
Available

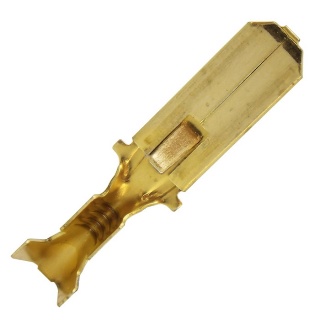

Durite 6.3mm Male Blade Terminals From 1.00mm² | Re: 0-011-22
