SW80-97 Albright Single-acting Solenoid Contactor 24V Intermittent

£38.95  Excl. VAT
  (£46.74 Inc. VAT)
 Excl. VAT

Earn 38 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  400 g





Model:  SW80-97
Bar Code:  DNA
Part Number:  SW80-97
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

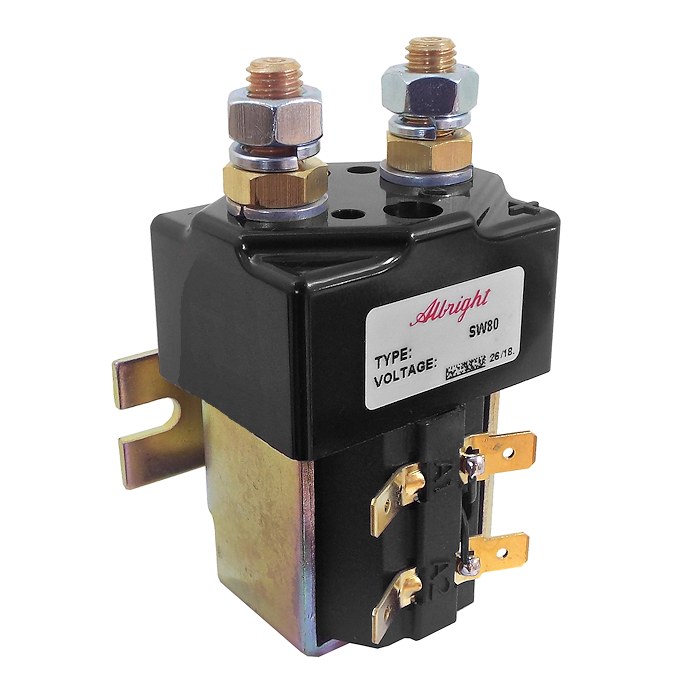

 SW80-97 single-acting solenoid contactor, 24V intermittent with integral bracket and enclosed top cover.

  • The SW80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
  • Repair contact kit part number: 2070-57.
  • Auxiliary switch kit part number: 2070-124.
  • Integral mounting bracket and enclosed top cover.

Dimensions

  • Height including terminals and coil base cap: 94mm.
  • Coil width: 41mm.
  • Cap width: 50.5mm.
  • Cap depth: 39mm.

About Intermittent (Int.) SW80 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST NO
Voltage 24V D.C.
Coil Type Intermittent
Amps 100 Amps
Coil Resistance (Ohms) 29
Pull-In Voltage (V) 14.0 Max.
Drop Out Voltage (V) 6.0 Max.
Coil Power Dissipation (W) 19.86
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 400g
Application Interrupted Uninterrupted
Thermal Current Rating 100A 125A
Intermittent Current Rating:
30% Duty 185A 230A
40% Duty 160A 200A
50% Duty 140A 175A
60% Duty 130A 160A
70% Duty 120A 150A
