SW80-1289P Albright Solenoid Contactor 54V Prolonged and Sealed to IP66
£38.95 Excl. VAT (£46.74 Inc. VAT)
Excl. VAT
Earn 38 Loyalty Points
| |
Weight: 400 g
Model: SW80-1289P
Bar Code: DNA
Part Number: SW80-1289P
Brand: Albright
Colour Black
Voltage 54V DC
Amperage 100A
Material Copper/Silver/Bakelite
Coil type Prolonged (PO)
| Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

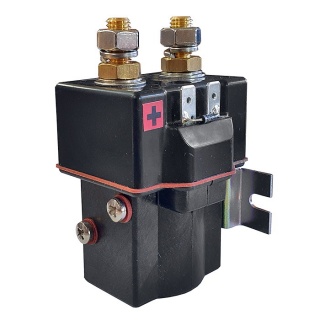

Albright International SW80-1289P 54Vdc single-acting solenoid contactor with diode, prolonged.
- Sealed to IP66 for weatherproofing and are suitable for internal marine applications.
- The SW80 series of contactors has been designed for direct current loads, particularly motors used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.; they have double-breaking contacts with Silver-alloy contact tips, which are weld-resistant, hardwearing and have excellent conductivity.
- They are economical in price and compare favourably with sealed automotive-style solenoid switches.
- Repair contact kits are not available for this unit due to the weatherproofing.
- Mounting bracket 2126-48C is fitted on the right-hand side of the coil terminals.
- Diode fitted, +VE on the left. The RED +VE Sticker is on the left.

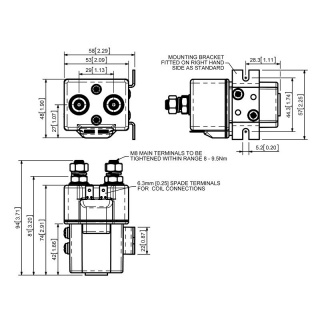

Dimensions
- Height, including terminals and coil base cap: 94mm.
- Coil width: 41mm.
- Cap width: 50.5mm.
- Cap depth: 39mm.
About Continuous (PO.) SW80P Solenoids
Prolonged use for up to 90% duty cycle, up to 54 minutes of continuous energisation. The coil is more powerful than continuous and weaker than the intermittent equivalent. The return spring is stronger than continuous but weaker than intermittent.
The SW80P features an enclosed top cover and offers environmental protection to IP66. The SW80P has M8 stud main terminals and 6.3mm spade coil connections. Mounted using supplied brackets, mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.
| Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications

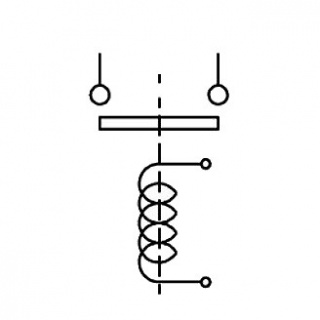

| Device Type | NO - SP - ST |
| Voltage | 54V D.C. |
| Coil Type | Prolonged |
| Amps | 100 Amps |
| Coil Resistance (Ohms) | 212 |
| Pull-In Voltage (V) | 36.0 Max. |
| Drop Out Voltage (V) | 13.5 Max. |
| Coil Power Dissipation (W) | 13.75 |
| Typical Pull-In Time | 20ms |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | < 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Protection | IP66 |
| Weight | 390g |
| Application | Interrupted | Uninterrupted |
| Thermal Current Rating | 100A | 125A |
| Intermittent Current Rating: |
| 30% Duty | 185A | 230A |
| 40% Duty | 160A | 200A |
| 50% Duty | 140A | 175A |
| 60% Duty | 130A | 160A |
| 70% Duty | 120A | 150A |
