SW66A-19 Albright Double Acting Reversing Solenoid 12V Intermittent

£56.16  Excl. VAT
  (£67.39 Inc. VAT)


Earn 56 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  500 g


Model:  SW66A-19
Bar Code:  DNA
Part Number:  SW66A-19
Brand:  Albright
Colour:  Black
Voltage:  12V DC
Amperage:  80A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

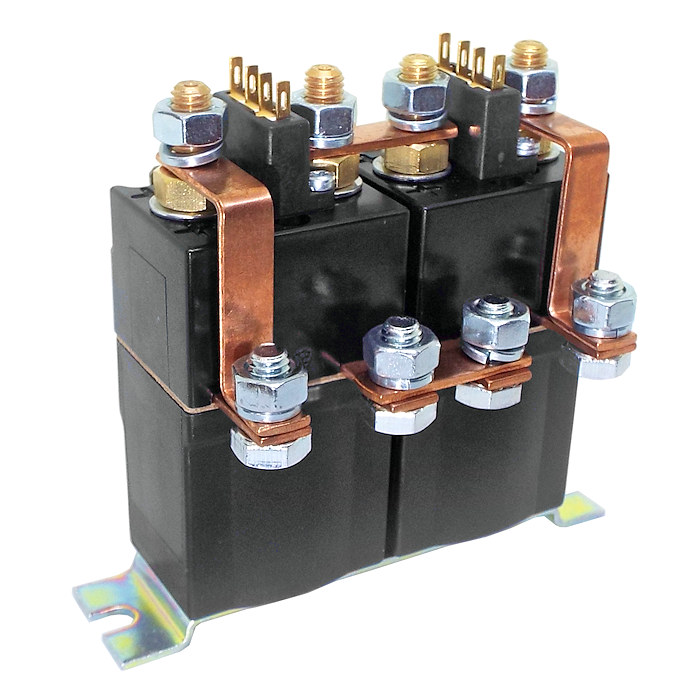

 SW66A-19 12 Volts 80A intermittent electric motor reversing strapped pair solenoid contactor.

  • The SW66A range of contactors is a miniature series contactor, designed to fill the gap between 30-ampere relays and 100-ampere contactors.
  • The SW66A has STUD termination and is suitable for free-standing within the installation.
  • The SW66A series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered and mobility or invalid cars, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant.
  • There are no contact kits available for this range of units.
  • Comes with a fixed base mounting bracket as standard.
  • The SW66A comes with auxiliary microswitches 3060-401 pre-installed.

Dimensions (Not including microswitches)

  • Base plate to the top of brass studs (height): 88mm.
  • Length including mounting bracket: 95mm.
  • Body length excluding mounting bracket: 73mm.
  • Depth including protruding studs: 48mm.
  • Mounting or line studs: M6.

About Intermittent (INT.) SW66A-19 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW66A features two single-pole SW61A contactors on a double bracket for motor reversing. The solenoids have double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW66A has M6 stud main terminals and 6.3mm spade coil connections. The SW66A is mounted via the base mounting bracket (supplied). Please note Normally Closed contacts are not suited to make and break load.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SW66A, 2 x SW61A on a double bracket
Voltage 12V D.C.
Coil Type Intermittent
Amps 80A
Coil Resistance (Ohms) 11
Pull-In Voltage (V) 7.0 Maximum
Drop Out Voltage (V) 3.0 Maximum
Coil Power Dissipation (W) 13.09
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
Less than 40mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 500g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A
