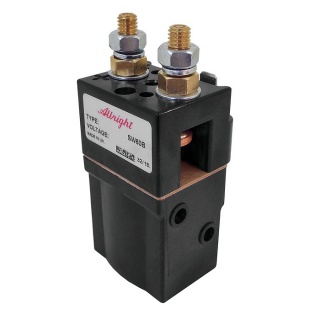

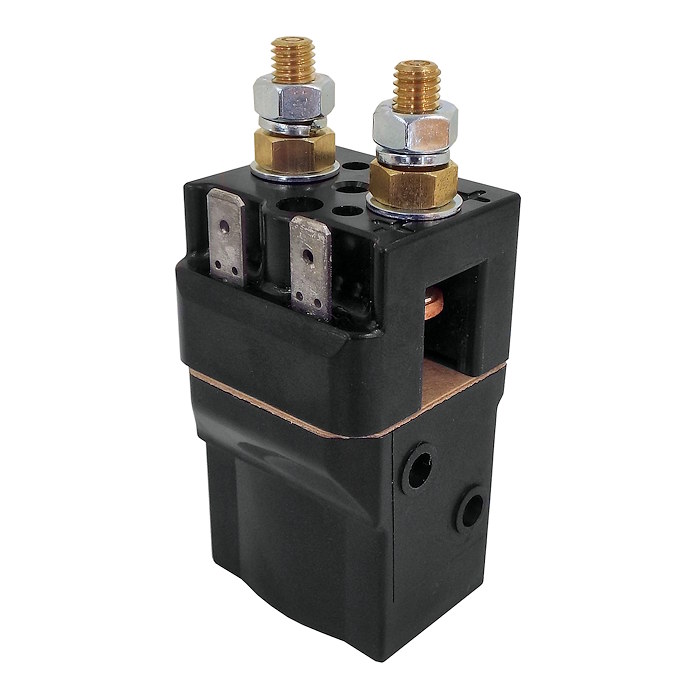

SW60B-8 Albright 48V DC Single-acting Miniature Solenoid Continuous 80A

£18.94  Excl. VAT
  (£22.73 Inc. VAT)
 Excl. VAT

Earn 18 Loyalty Points
5 in stock


Weight:  200 g





Model:  SW60B-8
Bar Code:  DNA
Part Number:  SW60B-8
Brand:  Albright
Colour  Black
Voltage  48V DC
Amperage  80A
Material  Copper/Silver/Bakelite
Coil type  Continuous

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 SW60B-8 series 48 Volts DC miniature single-acting contactor, continuous.

  • Albright SW60B series contactors have been designed for a compact DC contactor application. They are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

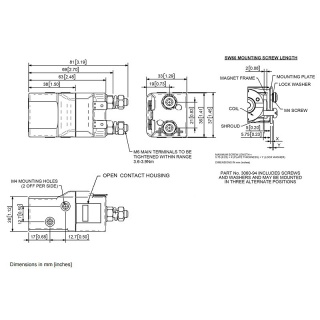

Dimensions

  • Height, including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

Magnetic Blowouts

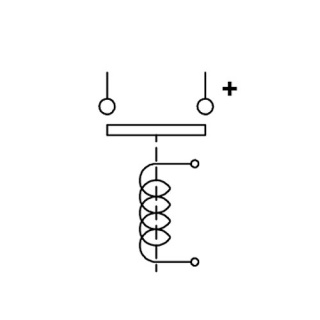

 These open-case contactors are double break configurations and fitted with magnetic blowouts (denoted by the 'B' suffix in the SW60B range) across both contact gaps. These enable high currents to be ruptured very quickly, so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive, and the positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SW60B Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW60B features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60B has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 48V D.C.
Coil Type Continuous
Amps 80A
Coil Resistance (Ohms) 410
Pull-In Voltage (V) 32.0 Max.
Drop Out Voltage (V) 12.0 Max.
Coil Power Dissipation (W) 5.62
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
< 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 198g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

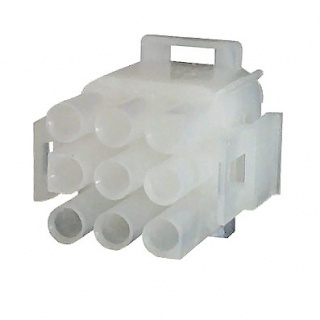

0-013-05 Pack of 5 Mate-N-Lock 2.00mm Male Housing 9-way
0-013-05 Pack of 5 Mate-N-Lock 2.00mm Male Housing 9-way

Durite Mate-N-Lock type 2mm male housings. 9-way White nylon block connector for automotive cables and vehicle wiring.


Available
 Reference: 0-013-05 £5.44   £4.84

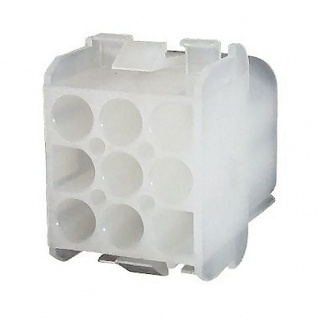

0-013-15 Pack of 5 Mate-N-Lock 2.00mm Female Housing 9-way
