SW300-1087 Albright 24V 300A Busbar Contactor - Continuous
£59.92 Excl. VAT (£71.90 Inc. VAT)
Excl. VAT
Earn 59 Loyalty Points
| |
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 600 g
Model: SW300-1087
Bar Code: DNA
Part Number: SW300-1087
Brand: Albright
Colour Black
Voltage 24V DC
Amperage 300A
Material Copper/Silver/Bakelite
Coil type Continuous
| Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

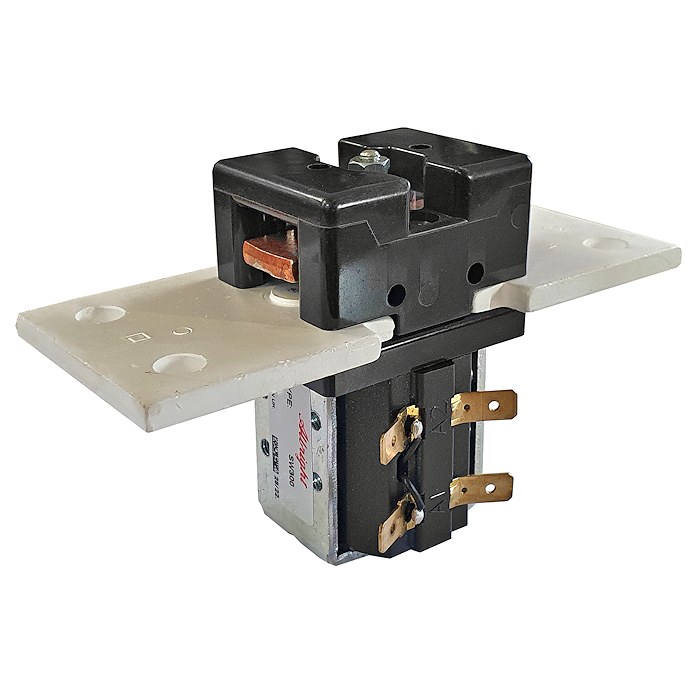

Albright International SW300-1087 24 Volts single-pole, single-throw (SPST) solenoid contactor.
- The SW300 is designed for use in telecommunications and power distribution applications where an uninterrupted current load is switched.
- These contactors are primarily used with Direct Current loads but can also be used with Alternating Currents.
- The SW300 features double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity.
- Silver plating on the main contacts is standard for the SW300.
- Due to their configuration, the SW300 contactors are deemed non-serviceable; therefore, contact kits are unavailable.
Dimensions
- Height including terminals and coil base cap: 79mm.
- Coil width: 40mm.
- Cap width: 49mm.
- Cap and fixed contact total width: 124mm.
- Fixed contact depth: 50mm.
Associated Parts
- 2070-40 Vertical mounting bracket single (2 x recommended)
- 2070-447 Horizontal mounting bracket kit (1 x recommended)
About Continuous (CO.) SW300 Solenoids
Continuous contactors by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW300 is a compact contactor that can be busbar mounted vertically or horizontally. If mounted vertically, the coil should be at the bottom.
| Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Device Type | NO - SP - ST |
| Voltage | 24Vdc |
| Coil Type | Continuous |
| Amps | 300 Amps |
| Coil Resistance (Ohms) | 52 |
| Pull-In Voltage (V) | 16.0 Max. |
| Drop Out Voltage (V) | 6.0 Max. |
| Coil Power Dissipation (W) | 11.08 |
| Typical Pull-In Time | 15ms |
Typical Voltage Drop Per Pole
Across New Contacts At 300A | < 50mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 560g |
| Application | Uninterrupted |
| Thermal Current Rating | 300A |
| Intermittent Current Rating: |
| 30% Duty | 550A |
| 40% Duty | 475A |
| 50% Duty | 425A |
| 60% Duty | 390A |
| 70% Duty | 360A |
