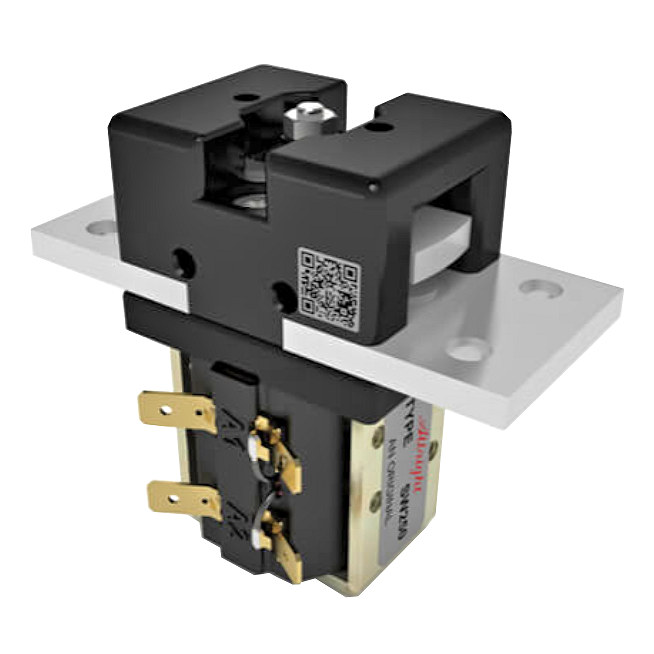

SW250-1030 Albright 48V Single-acting Busbar Solenoid Contactor - Continuous
£34.34 Excl. VAT (£41.21 Inc. VAT)
Excl. VAT
Earn 34 Loyalty Points
| |
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 470 g
Model: SW250-1030
Bar Code: DNA
Part Number: SW250-1030
Brand: Albright
Colour Black
Voltage 48V DC
Amperage 250A
Material Copper/Silver/Bakelite
Coil type Continuous
| Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |
Albright International SW250-1030 48 volts DC single-pole, single-throw (SPST) 'Normally Open' solenoid contactor, continuous.
- The SW250 is designed for use in telecommunications and power distribution applications where an uninterrupted current load is switched.
- These contactors are primarily for use with Direct Current loads but can also be used with Alternating Current if used in conjunction with an AC rectifier board (sold separately).
- The SW250 features double-breaking main contacts with Silver-alloy tips which are weld resistant, hardwearing and have excellent conductivity.
- Silver plating on the main contacts is standard for the SW250.
Dimensions
- Height including terminals and coil base cap: 79mm.
- Coil width: 40mm.
- Cap width: 49mm.
- Cap and fixed contact width: 89mm.
- Fixed contact depth: 38mm.
About Continuous (CO.) SW250 Solenoids
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW250 is a compact contactor which can be busbar mounted vertically or horizontally, if mounted vertically the coil should be at the bottom.
| Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Device Type | SPST NO |
| Voltage | 48Vdc |
| Coil Type | Continuous |
| Amps | 250 Amps |
| Coil Resistance (Ohms) | 212 |
| Pull-In Voltage (V) | 32.0 Max. |
| Drop Out Voltage (V) | 12.0 Max. |
| Coil Power Dissipation (W) | 10.87 |
| Typical Pull-In Time | 15ms |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | < 50mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 470g |
| Application | Uninterrupted |
| Thermal Current Rating | 250A |
| Intermittent Current Rating: |
| 30% Duty | 455A |
| 40% Duty | 395A |
| 50% Duty | 355A |
| 60% Duty | 325A |
| 70% Duty | 300A |
