RU280B-5003 Albright Single-acting 24V 350A Contactor - Intermittent

RU280B-5003 Albright Single-acting 24V 350A Contactor - Intermittent
RU280B-5003 Albright Single-acting 24V 350A Contactor - Intermittent
RU280B-5003 Albright Single-acting 24V 350A Contactor - Intermittent
£72.60 Excl. VAT
(£87.12 Inc. VAT)
Earn 72 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
RU280B-5003
Bar Code
DNA
Part Number
RU280B-5003
Brand
Albright
Colour
Black
Voltage
24V DC
Amperage
350A
Material
Copper/Silver/Bakelite/Steel
Coil type
Intermittent
Weight
760 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

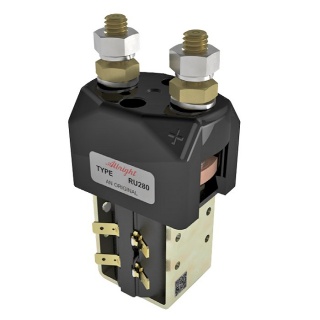

 Albright RU280B-5003 single-acting 24Vdc 350 Amps solenoid contactor with magnetic blowouts, intermittent.

  • The Reduced Silver series are suitable for applications where infrequent switching is specified. In such applications the degradation of the tip is minimal and therefore a higher volume of silver is unnecessary. Developed for Uninterrupted current applications the RU280 is typically used in line contactors or Power Distribution Systems.
  • Magnetic blowouts are fitted in the cap as standard on this unit.
  • Contacts repair kit part number: 2182-919
  • Auxiliary switch kit part number: 2155-352.

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.
  • Cap depth: 47mm.

Magnetic Blowouts

 These contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the RU280B range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive and the Positive markings on the top cover of the contactor must be observed.

About Intermittent (Int.) RU280B Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M5 tapped holes in the switch frame together with a range of mounting brackets. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST NO
Voltage 24V D.C.
Coil Type Intermittent
Amps 350 Amps
Coil Resistance (Ohms) 17
Pull-In Voltage (V) 14.5 Maximum
Drop Out Voltage (V) 6.0 Maximum
Coil Power Dissipation (W) 33.88
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 755g
Application Uninterrupted
Thermal Current Rating 350A
Intermittent Current Rating:
30% Duty 640A
40% Duty 555A
50% Duty 495A
60% Duty 450A
70% Duty 420A
