Durite Extra Flexible Convoluted Un-split Tubing 22NW | Re: 0-330-55

£144.03  Excl. VAT
  (£172.84 Inc. VAT)
RRP:  £165.56  Excl. VAT
Initial Savings:  £21.53
Earn 144 Loyalty Points
Available


Weight:  6.08 kg


Model:  3-330-55
Bar Code:  5056119152074
Part Number:  3-330-55
Brand:  Durite
Size  22NW
Colour  Black
Material  Polyamide 6

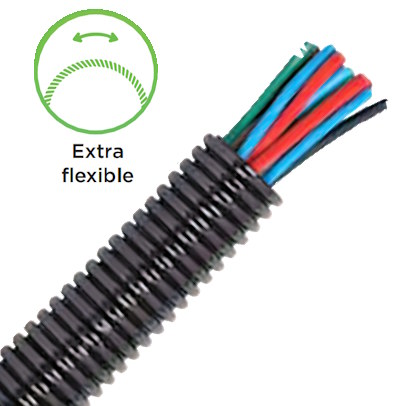

 Durite black extra flexible polyamide 6 convoluted un-split tubing.

  • Protects electric cables and looms against external elements.
  • NW: 22 (nominal width 22mm).
  • Inside diameter: 21.3mm, outside diameter: 25.6mm.
  • Packed Quantity: 100m roll.
  • Colour: black.
  • Material: polyamide 6.

Specifications

Type Convoluted un-split tubing
Application Protection of cable
Nominal width (NW) 22.0mm
Inside diameter (ID) 21.3mm
Outside diameter (OD) 25.6mm
Material Polyamide 6 (nylon)
Temperature range Minus 40 to +120℃
Flame retardant Yes
Halogen free Yes
Permanent vibration DIN 53442
UV resistance DIN EN ISO 8580
