Durite 20mm 15A Radio Glass Fuses | Re: 0-373-15

£1.98 Excl. VAT

RRP ~~£2.22~~ Excl. VAT

Initial Savings

£0.24

(£2.38 Inc. VAT)

Earn 1 Loyalty Points

Select Option

Available

Model

0-373-15

Bar Code

5056119109887

Part Number

0-373-15

Brand

Durite

Colour

Clear

Voltage

12V/24V DC

Amperage

15A

Material

Glass/Nickel/Brass

Weight

20 g

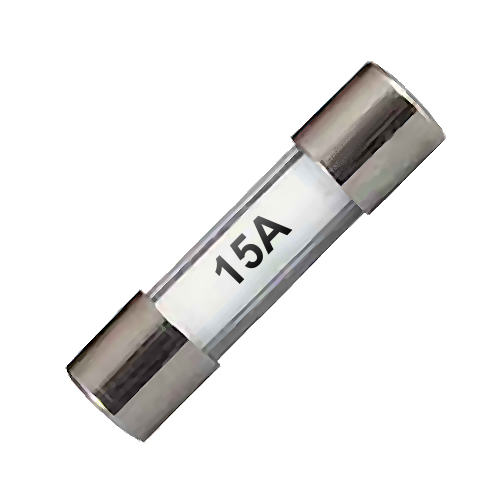

Durite 20mm standard 15 Amps radio glass fuse for automotive electrical surge protection.

Glass-encased fuse element with nickel-plated brass end caps.
Continuous Rating: 15A.
Blow Rating: 30A.
Always check your equipment's manual before replacing fuses to determine which fuses you require.
Pack Quantity: 10 and 50 pieces.

Dimensions

Total Length: 20.0mm
Total Diameter: 5.0mm

About The 15A 20mm Glass Radio Fuse

The Durite classic style glass fuse with 5.0mm diameter nickel-plated brass caps is historically used for surge protection, usually found mounted on vehicle PCBs and when used inline on automotive cables and vehicle wiring.

The ratings for 15A continuous use are based on a circuit constant load being always-on, and the 30A blow rating is based on the circuit load being intermittent.

Fuse Ratings

Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent, and therefore the fuse is required to heat up before blowing.

Delivery

UK Mainland Postage Offer

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

Also Bought

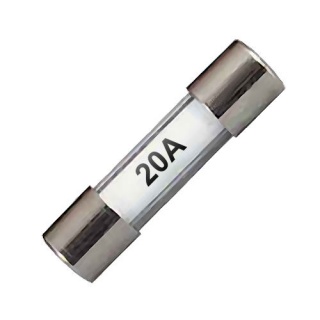

Durite 20mm 20A Radio Glass Fuses | Re: 0-373-20
