0-997-20 Durite 30m 7-Core Thin-Wall PVC Trailer Cable

£157.26  Excl. VAT
  (£188.71 Inc. VAT)
RRP:  £176.70  Excl. VAT
Initial Savings:  £19.44
Earn 157 Loyalty Points
Available


Weight:  7.68 kg





Model:  0-997-20
Bar Code:  5056119133967
Part Number:  0-997-20
Brand:  Durite
Colour  Black/Brown/Blue/White/Yellow/Green/Red
Material  Copper/PVC

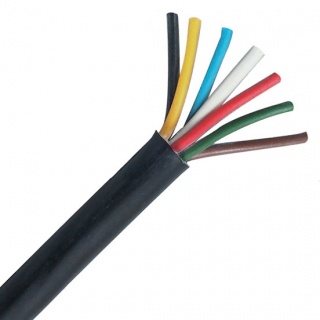

 Durite 30 Metres 7-core Thin-wall PVC trailer cable with 5 x 1.5mm² and 2 x 4mm² PVC coated wires.

  • Roll length: 30m.
  • 7-core, EBS.
  • 5 x 21/0.30mm 1.50mm² and 2 x 56/0.30mm 4.00mm².
  • Colour-coded cables; Black, Yellow, White, White/Green, White/Brown, Red and Brown.
  • Multicore PVC auto cable to BS6862/ISO6722:2006 Class B (Thin Wall).

Specifications

Type 7 core EBS Thin Wall cable
Wire 5 x 21/0.30mm, 2 x 56/0.30mm copper
Cross Section 1.50/4.00mm²
Current Rating 21/39 Amps
Voltage (Maximum) 60 Volts DC
Resistance 12.7/4.7mΩ/m at 20° C
Insulation Calcium Zinc based insulation compound to ISO6722-2000 Class B Sheath PVC
Overall Diameter 11.2mm
Temperature up to +105 Degree C (200° C for 55 mins)
Weight 7.68
