0-379-68 Black Male PAL Short Leg Automotive Fuse 80A

£4.55  Excl. VAT
  (£5.46 Inc. VAT)
RRP:  £5.23  Excl. VAT
Initial Savings:  £0.68
Earn 4 Loyalty Points
Available


Weight:  10 g


Model:  0-379-68
Bar Code:  5056119111248
Part Number:  0-379-68
Brand:  Durite
Colour  Black
Voltage  32V DC Max.
Amperage  80A
Material  Thermoplastic/Copper

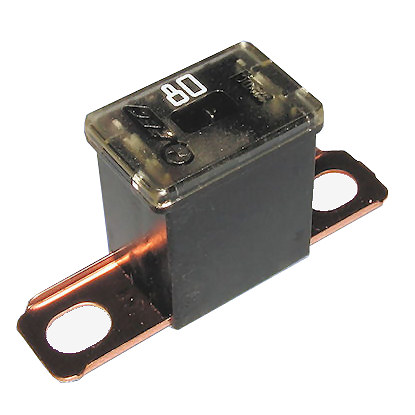

 Durite black short-legged 80 Amps PAL type automotive cartridge fuse.

  • Type: Bolt down short leg cartridge fuse.
  • Colour Coded: Black.
  • Voltage rating: 32Vdc Maximum.
  • Continuous Rating 80A.
  • Blow Rating 160A.
  • Pack Quantity: 1 piece.

Dimensions

  • Length including legs: 48mm.
  • Body depth: 15mm.
  • Body length: 20mm.
  • Body height: 21mm.
  • Hole centres: 37mm.

About The Black 80A Bolt Down Cartridge Fuse

 Durite replacement black 60 Amps short leg bolt down fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 80A continuous use is based on a circuit constant load being always-on, the 160A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
